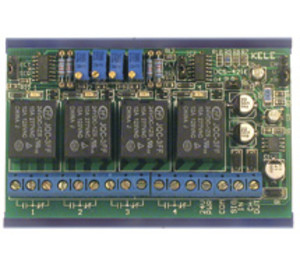

UCS-421E-Y1 | Kele | Transducers
UCS-421E W/SPECIAL RANGE 1V, 2V, 3V, 4V
Brand:Kele
MPN:UCS-421E-Y1
SKU:UCS-421E-Y1
List Price:
$176.00
Today's Price:
$91.52
Log in for customized pricingproduct specifications
Type
Electro-Pneumatic
Supply Voltage (Nominal)
24 VAC,24 VDC
Output Signal
Relay
Input Signal
Analog
Mount
Snap Track
product series specifications
Supply Voltage: 24 VAC ±10%, half-wave; or 24 VDC ±10%
Supply Current: 160 mA @ 24 VAC; 80 mA @ 24 VDC maximum
Accuracy: ±1%
Input: 0-20 mA or 0-15 VDC, jumper selectable
Input Impedance: 250 Ω (mA input); 49.7 kΩ (VDC input)
Output: Four SPDT relays, adjustable via setpoint potentiometers
Relay Differential: Factory set at 0.5 mA or 0.375V, adjustable using plug-in resistors
Relay Output: 10A @ 120 VAC
Wiring Terminations: Screw terminals
Operating Temperature: 32° to 158°F (0° to 70°C)
Operating Humidity: 5% to 95% RH (non-condensing)
Weight: 0.6 lb (0.25 kg)
Approvals: RoHS
Warranty: 1 year
product series features
- Four stages of relay control
- Voltage or current input
- LED indication of relay status
- Adjustable relay setpoints
- Adjustable relay differentials
- Loss of signal feature
- Snap-track mounted
more information & related documents
Series Description
The Kele UCS-421E is a solid-state device used for multistage control in HVAC systems, sequencing boilers or chillers, or floating/tri-state control of VAV boxes from a single analog signal. The UCS-421E can be used to obtain a digital output from a voltage or current producing sensor. Units may be daisy chained to provide additional stages of control, and a mounting track for easy installation.
Kele Description
UCS-421E W/SPECIAL RANGE 1V, 2V, 3V, 4V
Manufacturer
Kele
