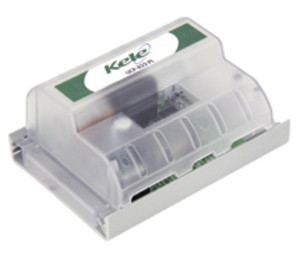

* product series image displayed

UCP-822A-AO-PL | Kele | Transducers

ELEC/PNEU TRANSDUCER I,V,PWM,TRI/P;I/V OUT;ALARM

Brand:Kele

MPN:UCP-822A-AO-PL

SKU:UCP822AAOPL

List Price:

$527.00

Today's Price:

$274.04

installation instructions

catalog page

Lead time of 15 days. Chat with Kele experts now

product specifications

Mount

DIN rail

Type

Electro-Pneumatic

Output Signal

Pneumatic

Input Signal

Analog, Tri-state, PWM

Supply Voltage (Nominal)

24 VDC

product series specifications

Supply Voltage: 22-30 VDC, or 20-30 VAC

Supply VA: 350 mA maximum (half-wave)

Input: 0-5 VDC, 0-10 VDC, 4-20 mA, tri-state, PWM

Input Impedance: 10 kO, VDC input; 250 O, 4-20 mA input

Output: 0-25 psig (0-175 kPa) configurable

Wiring Terminations: Screw terminals

Air Capacity: 333 scim (5456 cm³/min) @ 20 psig (138 kPa) supply; 523 scim (8570 cm³/min) @ 45 psig (310 kPa) supply

Air Connections: 1/4" OD tubing

Air Consumption: None in steady state

Maximum Pressure: 45 psig (310 kPa)

Media Compatibility: Clean, dry air or inert gas

Minimum Tubing Length: 15 ft. (4.6 m)

Repeatability: <1% full scale

Linearity: <1% full scale

Hysteresis: <1% full scale

Operating Temperature: 41° to 140°F (5° to 60°C)

Operating Humidity: 10 to 90% RH (non-condensing)

Dimensions: 3.5"H x 3.3"W x 1.9"D (8.5 x 8.3 x 4.6 cm)

Weight: 0.8 lb (0.36 kg)

Approvals: CE

Warranty: 5 years

product series features

Extended PWM and Tristate settings
Programmable pressure output up to 25 psig
Field-selectable signal inputs (4-20mA, voltage, tri-state, PWM)
LCD display for local indication of readings
No air consumption and quiet operation
Easy mounting with snap track housing
Pressure loss or manual mode alarm
Optional analog output 4-20mA or 0-10 VDC selectable

more information & related documents

Series Description

The Kele UCP-822A microcontroller based electronic/pneumatic transducer incorporates high performance poppet valve technology and low-power coils with digital control to provide unmatched accuracy and proven reliability. In addition to providing reliable, stable operation, the poppet valves used in the UCP-822A consume no air. The UCP-822A features programmable pressure ranges and an LCD display. This universal transducer has field selectable analog inputs for 4-20mA, voltage, tri-state, or PWM.

Kele Description

ELEC/PNEU TRANSDUCER I,V,PWM,TRI/P;I/V OUT;ALARM

Manufacturer

Kele
