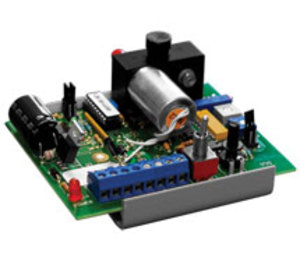

EPW2GFS | ACI | Transducers
PWM TO PNEU, 2 VALVE W GAUGE,EXHAUST ON POWER FAIL
Brand:ACI
MPN:EPW2GFS
SKU:EPW2GFS
List Price:
$796.23
Today's Price:
$414.04
Log in for customized pricingproduct specifications
Mount
Snap Track
Type
Electro-Pneumatic
Output Signal
Pneumatic
Input Signal
PWM
Supply Voltage (Nominal)
24 VAC
product series specifications
Power: 24 VDC or 24 VAC @ 200 mA.
Trigger: 9-24 VAC/VDC
Input: Analog
Input Range: 0.1-10, 0.02-5, 0.1-25, 0.59 to 2.93, 0.023-6, or 0-10 sec. duty cycle, or 0-20 V phase cut
Output: Pneumatic
Output Range: 0-10, 0-15, 0-20 psig & field adjustable
Feedback: 0-5 VDC = output
Specification: Valved exhaust & Fail-safe model, or bleed type of 14, 41, or 73 scim.
product series features
- Terminals and air connections oriented for convenient panel installation
- Plug-in terminals
- Snap track included
more information & related documents
Series Description
Pulse Width Modulation (PWM) to Pneumatic Output. Manual override. Please see Product Information below for specifications.
Kele Description
PWM TO PNEU, 2 VALVE W GAUGE,EXHAUST ON POWER FAIL
Manufacturer
ACI
Related Documents
EPW Series Datasheet
