UAT-1C | Kele | Transducers
UNIV ANALOG XDUCR-ENCL-CALIBR
Brand:Kele
MPN:UAT-1C
SKU:UAT-1C
List Price:
$316.00
Today's Price:
$164.32
Log in for customized pricing
product specifications
Mount
DIN rail
Type
Electronic
Output Signal
Analog, Digital
Input Signal
Analog
Supply Voltage (Nominal)
24 VAC
product series specifications
Supply Voltage: 24 VAC ±10%, half-wave; or 24 VDC ±10%
Supply Current: 50 mA maximum @ 24 VDC; 100 mA maximum @ 24 VAC
Input: Jumper selectable and adjustable; Voltage ranges from 0-1.09 VDC (w/minimum span 55 mV) to 0-20 VDC (w/minimum span 1V); Current ranges from 0-4 mA (minimum span 0.2 mA) to 0-40 mA (minimum span 2.2 mA); Three-wire potentiometer ranges from 0-100O to 0-10 kO; Two-wire variable resistance ranges from 0-100O to 0-5 kO
Input Signal: DC voltage, current, or resistance
Input Impedance: 250kO @ 0-4 mA & 0-40 mA; 156kO @ 0-1.09 VDC & 0-10.9 VDC; 293kO @ 0-2 VDC & 0-20 VDC
Action: Direct or reverse acting
Linearity: <0.1% of span
Output: Jumper selectable and fully adjustable zero/span
Voltage: 0-18 VDC @ > 900O
Current: 0-10 VDC @ > 500O
Current: 0-20 mA @ < 650O
Output Current: For sensor excitation only, jumper selectable; 1.2 mA @ 5 kO maximum, 5 mA @ 1.5 kO maximum, 10 mA @ 750O maximum
Output Voltage: For sensor excitation only, jumper selectable; 1.2 VDC @ 12 mA maximum (100O minimum), 5 VDC @ 12 mA maximum (417O minimum), 10 VDC @ 12 mA maximum (834O minimum)
Wiring Terminations: Screw terminals
Operating Temperature: 32° to 158°F (0° to 70°C)
Operating Humidity: 5% to 95% RH (non-condensing)
Dimensions: UAT-1 3.0"H x 4.8"W x 1.5"D (8.6 x 5.1 x 12.4 cm) UAT-2 3.3"H x 4.6"W x 1.0" D (8.3 x 11.8 x 2.5 cm)
Weight: 0.8 lb (0.36 kg)
Warranty: 1 year
product series features
- DC voltage, current, or resistive input
- Inputs from 0-20 VDC, 0-40 mA or 0-10 VDC
- Input and output jumper selectable and easily field calibrated
- Outputs from 0-18 VDC or 0-20 mA
- Direct or reverse acting, jumper selectable
- Reference voltage and current available to power an input device or sensor
more information & related documents
Series Description

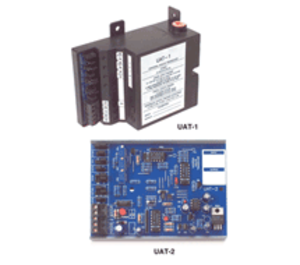

The UAT-1 and UAT-2 Series universal analog transducers are used for analog signal conversion or to scale signal. The analog signal converter will accept a DC voltage, current, or resistive input signal and output a non-isolated voltage or current output. These transducers can be direct or reverse acting and are easily field calibrated to meet a wide variety of applications in building automation systems, BAS. The UAT-1 is furnished in a unique slim-line design housing, which saves panel space, and can be ordered with an optional DIN rail mounting adapter. The UAT-2 is a snap-track mounted version and operates the same as the UAT-1.
Kele Description
UNIV ANALOG XDUCR-ENCL-CALIBR
Manufacturer
Kele
