RES-1E | Kele | Transducers

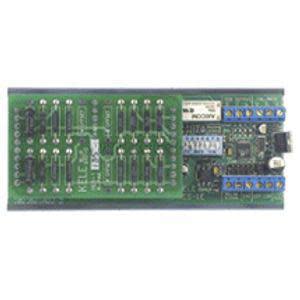

135 Ohm Output Universal Resistance Transducer
Brand:Kele
MPN:RES-1E
SKU:RES-1E
List Price:
$353.00
Today's Price:
$183.56
Log in for customized pricingproduct specifications
Mount
DIN rail
Type
Electronic
Output Signal
Resistance
Input Signal
Analog
Supply Voltage (Nominal)
24 VAC
product series specifications
Supply Voltage: 24 VAC ±10%, half-wave; or 24 VDC ±10%
Supply Current: 220 mA @ 24 VAC, 100 mA @ 24 VDC
Accuracy: ±1% of span
Input: Various selectable analog and pulse width modulated (PWM)
Input Signal: 0-20 mA, 4-20 mA, 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC, 0-15 VDC, 3-15 VDC, or PWM
Pulse Rate: PWM time base selections 0.1-2.65, 5.2, 12.85, 25.6, or 0.59-2.93 seconds
Input Impedance: 250 O (current); 27.5 kO (voltage)
Linearity: ±1% of span
Output: 0-135 O, 0-1000 O, 0-270 O, 0-500 O, Special range (specify upon ordering, min span = 30 O, maximum span = 1 MO)
Output Resolution: 255 steps
Wiring Terminations: Screw terminals
Operating Temperature: 32° to 158°F (0° to 70°C)
Operating Humidity: 5% to 95% RH (non-condensing)
Dimensions: 3.3"H x 6.5"W x 1.3"D (8.3 x 16.5 x 3.2 cm)
Weight: 0.7 lb (0.32 kg)
Approvals: RoHS
Warranty: 1 year
product series features
- Ideal for controlling electric actuators
- Replaces potentiometer or temperature sensor in boiler/chiller reset circuits
- 0-20 mA, 4-20 mA, 0-5V, 1-5V, 0-10V, 2-10V, 0-15V, 3-15 VDC or PWM input signals, DIP switch selectable
- AC/DC powered
- Replaces motorized slide-wire potentiometer controller
- 0-135Ω, 0-270ohm, 0-500ohm, and 0-1000ohm standard outputs, custom ranges available
- Snap-track mounting
- Failsafe mode and signal loss feature
- LED indication
more information & related documents
Series Description
The Kele RES-1E Series universal resistance transducer provides a precision resistance output for DDC control of electric actuators or other electronic devices that operate from a variable resistive circuit. Various selectable analog and pulse-width modulated (PWM) inputs are available, and the transducer may be powered from 24 VAC or 24 VDC. The RES-1E is furnished with snap-track for easy mounting.
Kele Description
135 OHM OUTPUT UNIVERSAL RESISTANCE TRANSDUCER
Manufacturer
Kele
