21550T | Southwire | Tools & Test Equipment
CLAMP METER, 400A AC/DC 21050T
Brand:Southwire
MPN:21550T
SKU:21550T
List Price:
$378.00
Today's Price:
$196.56
Log in for customized pricingproduct specifications
Measurement Range
32 to 104 °F, 0 to 40 °C
Power Supply
3-AAA 1.5V Batteries
Type
Clamp Meter
Width
2.9 in
Height
1.6 in
Display
LCD
Response Time
3 Readings p/s
product series specifications
Clamp jaw opening: 1.2" (30.5mm)
Insulation: Class 2, Double insulation
Display: 4000 count backlit LCD
Polarity: Minus symbol "-" is displayed for negative polarity
Over Range Indication: "OL" is displayed
Diode Test: Test current approx. 1mA, open circuit voltage approx. 3
Continuity Test: Audible beeper sounds if resistance is approx. son or
Low Battery Indication: Low battery picture is displayed
Measurement Rate: 3 times per second, nominal
Auto Power Off: After approx. 15 minutes of inactivity
Input Impedance: AC/DC voltage: +/-1OM Omhs
AC Response: Average Responding
AC Bandwidth: AC voltage: 50 to 400Hz, AC current: 50 to 400Hz
Battery: Three AAA batteries
Operating Temperature: 32° to 104°F (0°C to 40°C)
Storage Temperature: 14° to 122°F (-10°C to 50°C)
Relative Humidity: Maximum, non-condensing: 95% up to 82°F (28°C) 75% to 104°F (40°C), 45% to 122°F (50°C)
Operating Altitude (Maximum): 0-2000 meters
Weight: 269 (including three AAA batteries)
Dimensions: 8.5" x 2.9" x 1.6" (216 x 74 x 41mm)
Safety:UL: 61010 - 1:2012, 61010-2-032: 2014, 61010-2-03 2014 EMC: EN61326-1:2013, EN61326-2-2:2013
more information & related documents
Series Description

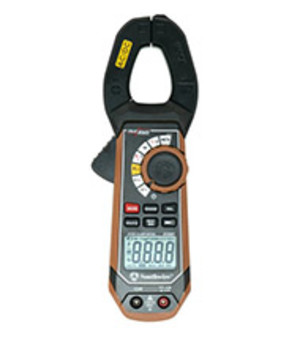

Southwire's 21550T 400A AC/DC clamp meter with True RMS offers the features needed for the professional electrician, including True RMS accuracy, the ability to measure both AC and DC current, and a built-in, non-contact, AC voltage detector. Other features included are REL and max/min functions in addition to standard multimeter functions such as resistance, capacitance, continuity, temperature, and diode. This clamp meter also has a third-hand test probe holder and a bright LED work light. The 21550T is built to last and is guaranteed to survive a six-foot drop.
Kele Description
CLAMP METER, 400A AC/DC 21050T
Manufacturer
Southwire
Related Documents
21550T Operations Manual
