LOGPROBE31 | E+E Elektronik | Tools & Test Equipment
LOGPROBE31 RH/T HIGH TEMP PROBE 12MM
Brand:E+E Elektronik
MPN:LOGPROBE31
SKU:LOGPROBE31
List Price:
$3,669.00
Today's Price:
$1,907.88
Log in for customized pricingproduct specifications
Measurement Range
0 - 100 %RH, -40 to 356 °F, -40 to 180 °C
Type
RH/T
Response Time
30 s
Probe Material
Stainless Steel
product series specifications
Supply Voltage:
4 x Alkaline LR6 AA batteries
5V DC via USB (cable included)
Temperature Range:
Operating: Handheld and handle of sensing probe: 0 to 50°C (32 to 122°F)
Storage: -20 to 60°C (-4 to 140°F)
Internal Memory:For approximate 2 million measured values
Housing Type:ABS / IP40
Dimensions:170 x 62 x 34 mm (6.69 x 2.44 x 1.34")
Weight:0.45 lbs
Display:TFT display, 54 x 51 mm (2.13 x 1.61") illuminated
Approval:
CE compatibility Hand-held: EN61000-6-2:2005, EN61000-6-3:2007
Logprobe: EN61326-1:2013, EN61326-2-3:2013
Measurement Range of Integrated Pressure Sensor:800 to 1100 mbar (complete accuracy)
Accuracy:Max ± 0.5 mbar (at 25°C, 1013.25 mbar)
Long Term Stability:Typ. -1 mbar/year
Warranty:1 year
product series features
- Data logging
- Internal memory for 2 million measured values
- Capacitive TFT touch screen
- Real-time HOLD / MIN / MAX / AVG readout
- Integrated air pressure sensor
- User friendly operation
- NIST certificate included
more information & related documents
Series Description

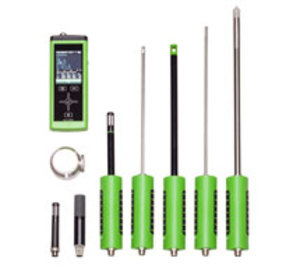

The E + E Omniport 30 is a robust multifunctional hand-held device which meets the highest requirements and comes with a wide range of accurate probes that fit various applications. Use touch-screen navigation to show, up to three measurement values simultaneously on the capacitive TFT display. Measurements Include: Relative humidity, Temperature, Dew point temperature, Absolute humidity, Mixing ratio, Air velocity, Volumetric flow, Air pressure, and CO2
Kele Description
LOGPROBE31 RH/T HIGH TEMP PROBE 12MM
Manufacturer
E+E Elektronik
Related Documents
Omniport30 Data Sheet
