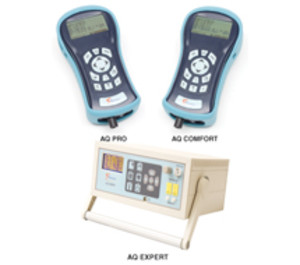

AQ COMFORT:

Sensor:

CO2: NDIR

CO: Electrochemical

Relative Humidity: TFC

Ambient Temperature: Pt100

Differential Pressure: Bridge

Temperature (Type K T1): Tc K

Range:

CO2: 0-5,000 ppm

CO: 0-200 ppm

Relative Humidity: 5-95%

Ambient Temperature: -40° to 257°C (-40° to 125°F)

Differential Pressure: ±40.0 inH2O (±100.0 mbar)

Temperature (Type K T1): 0° to 2000°C (0° to 1100°F)

Resolution:

CO2: 1 ppm

CO: 0.1 ppm

Relative Humidity: 0.1%

Ambient Temperature: 0.1°C/°F

Differential Pressure: 0.1 inH2O (0.25 mbar)

Temperature (Type K T1): 1°C/°F

Accuracy:

CO2: ±2% rdg. ±10 ppm

CO: ±1 ppm rdg. ±0.2 ppm

Relative Humidity: ±2% RH

Ambient Temperature: ±0.4°C (0° to 60°C)

Differential Pressure: ±1% rdg.

Temperature (Type K T1): 5°C (3°F) or 2% of rdg.

Electromagnetic Compatibility: EN-61326-1, portable equipment

AQ VOC:

Sensor:

Low Range: PID

High Range: PID

Relative Humidity: TFC

Ambient Temperature: Pt100

Barometric Pressure: Solid State

Differential Pressure: Bridge

Air Velocity: Calculated

Range:

Low Range: 0-20 ppm

High Range: 0-200 ppm

Relative Humidity: 5-95%

Ambient Temperature: -40° to 257°C (-40° to 125°F)

Barometric Pressure: 260-1260 mbar

Differential Pressure: ± 8.0 in H2O

Air Velocity: 0-300 ft/sec

Resolution:

Low Range: 1ppb

High Range: 1 ppm

Relative Humidity: 0.1% RH

Ambient Temperature: 0.1°C/°F

Barometric Pressure: 1 mbar

Differential Pressure: 0.1 inH2O

Air Velocity: 1 ft/sec

Accuracy:

Low Range: 10% rdg. ±20 ppb

High Range: 10% rdg. ±50 ppb

Relative Humidity: ±2% RH

Ambient Temperature: ±4°C

Barometric Pressure: ±2 mbar

Differential Pressure: ±1% rdg.
