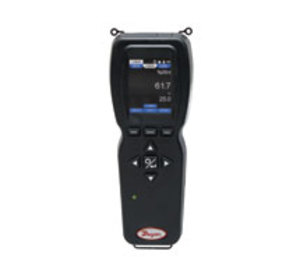

* product series image displayed

VP1 | Dwyer Instruments | Tools & Test Equipment

ANEMOMETER RELATIVE HUM & TEMP WIRED PROBE

Brand:Dwyer Instruments

MPN:VP1

SKU:VP1

List Price:

$830.00

Today's Price:

$431.60

catalog page

Lead time of 10 days. Chat with Kele experts now

product specifications

Application

Velocity, Flow, Humidity, Temperature

Measurement Range

40 - 5,000 fpm, 20 to 212 °F, -29 to 100 °C, 0 - 100 %RH

Probe Length

8 in

Type

RH/T

Response Time

1 - 1.5 s

product series specifications

Languages: English, German, Italian, Portuguese, Spanish

Display: OLED, color 240 x 320

Temperature Limits: 5° to 125°F (-15° to 51°C)

Battery Charging Limits: 32° to 113°F (0° to 45°C)

Resolution: 1 FPM, 0.1 MPS, 0.1 CFM & M3/HR; 0.1 °C & °F; RH 0.1%

Units:

Air Velocity: FPM, MPH, KN, M/H, M/S K/H, FPS

Flow: CFM, M3/HR, M3/S, GPM, GPH, GPD, LPS, LPM, LPH

Temperature: °C, °F

Housing: Thermoplastic elastomer over polycarbonate

Power Requirements: 3V BR1225 lithium ion battery, install functional, non-replaceable and 3.7V lithium ion battery, installed functional, non-replaceable. (Note: Intended to be operated with power cables less than 3 m in length.)

Maximum Wireless Distance: 50' (15 m)

Weight: 1lb (283 kg)

Approvals: CE (while not charging), FCC compliant

product series features

UHH base quickly recognizes wired or wireless probes and modules
Inherent rubber overmold housing combined with protective caps enable units to withstand abuse in dusty environments
Manual or automatic data logging models
Internal memory or expanded memory with portable SD card

more information & related documents

Series Description

The Dwyer Model UHH universal handheld test instrument is a highly versatile instrument that offers the utmost flexibility and ease of user operation by having the capacity to work with a variety of Dwyer sensing modules and probes. Additional wired and wireless probes or modules are instantly recognized by the UHH without any use reprogramming or alteration, allowing seamless sensor addition, upgrade or replacement.

Kele Description

ANEMOMETER RELATIVE HUM & TEMP WIRED PROBE

Manufacturer

Dwyer Instruments
