490A-2 | Dwyer Instruments | Tools & Test Equipment

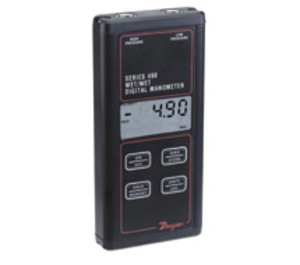

HANDHELD WET/WET DIGITAL MANOMETER 0-30 PSID
Brand:Dwyer Instruments
MPN:490A-2
SKU:490A-2
List Price:
$2,269.00
Today's Price:
$1,179.88
Log in for customized pricingproduct specifications
Application
Calibration, Low Pressure
Type
Digital
Pressure Range
0 - 30 PSId
product series specifications
Supply Voltage: 9V alkaline included
Battery Life: Up to 100 hours
Accuracy: ±0.5% FS from 60° to 78°F (15.6° to 25.6°C)
±1.5% FS from 32° to 60°F (0 to 15.6°), 78° to 104°F (25.6° to 40°C)
Pressure Range:
490-1: 0-15 psid (0-103 kPa)/30 psig max (207 kPa)
490-2: 0-30 psid (0-207 kPa)/60 psig (413 kPa) maximum
490-3: 0-50 psid (0-345 kPa)/100 psig (689 kPa) maximum
Device Type: Service of compatible, non-combustible gases and liquids
Wetted Materials: Type 316L stainless steel
Connection Type: Two 1/8" (3.18 mm) female NPT
Display: 0.42" (10.6 mm), 4-1/2 digit LCD
Operating Temperature: 32° to 104°F (0° to 40°C)
Dimensions: 9?H x 4.7?W x 0.9?D (27.9 x 11.9 x 2.3 cm)
Weight: 0.88 lbs (0.4 kg)
Approvals: CE
Warranty: 1 year
product series features
- Measures either positive or positive differential pressure
- High accuracy (±0.5% FS)
- Tolerant of most liquid media compatible with 316L stainless steel
- Seven English and metric pressure units (psi, in.H20 in. Hg, mm Hg, kPa, Bar, or mBar)
- Two 1/8 in female NPT connections
more information & related documents
Series Description
The Dwyer 490 Series wet/wet digital manometers are versatile, handheld, and battery operated. Units are highly accurate (±0.5% FS) for positive or positive-differential pressure measurement, and they can handle or be used with most liquid media compatible with 316L stainless steel. There are seven common English and metric pressure units (psi, in. H2O, in. Hg, mm Hg, kPa, Bar, or mBar), so conversions are not necessary.
Kele Description
HANDHELD WET/WET DIGITAL MANOMETER 0-30 PSID
Manufacturer
Dwyer Instruments
Related Documents
490 Instruction Manual
