BA/BT-HVAC-BUNDLE | BAPI | Tools & Test Equipment

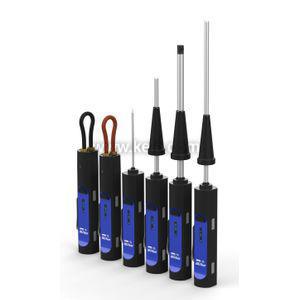

Blu-Test Differential Pressure, All Six Tools In Bundle

Brand:BAPI

MPN:BA/BT-HVAC-BUNDLE

SKU:BA/BT-HVAC-BUNDLE

List Price:

$-.--

Today's Price:

$-.--

product datasheet

installation instructions

Lead time of 0 days. Chat with Kele experts now

product specifications

Power Supply

3.7V

Type

Differential Pressure

Response Time

10 s

Input Signal

Bluetooth

product series specifications

Power: 3.7V, 2,600 mAh Rechargeable Battery (charging cable included)

Environmental Range

Unit’s Base: -22 to 158°F (-30 to 70°C)

Temperature Probes: -40 to 185°F (-40 to 85°C)

%RH Probe: 5 to 95% Non-condensing

Differential Pressure Probe: -4 to 158°F (-20 to 70°C)

Measurement Range

Temperature: -40 to 185°F (-40 to 85°C)

%RH: 20 to 80% Non-condensing

Differential Pressure

Standard Range: Low Range: -1 to +1"WC (-250 to +250 Pascal)

Standard Range: -5 to +5"WC (-1,250 to +1,250 Pascal)

Typical Accuracy

Temperature: ±0.54°F@77°F (±0.3°C@25°C)

%RH: ±2%RH@77°F (25°C)

Differential Pressure: Low Range: ±0.25% of FS Span, -1 to +1"WC (-250 to +250 Pascal)

Communication: Bluetooth LE, Class 2 v4.2

Data Transfer: Updates to display every 10 seconds

Approvals: RoHS, CE, NIST traceable certificate

FCC ID: Contains FCC ID 2AA9B04

more information & related documents

Series Description

Bapi's Blu Test series is a suite of handheld testing probes that interface via Bluetooth Low Energy (BLE) to the user's enabled Android or iOS smart phone or tablet. Each probe comes with a National Institute of Standards and Technology (NIST) traceable certificate of calibration. Blu Test is simple to use. Just start up the app on your smartphone or tablet and touch-select the probe to sync Bluetooth communication. Multiple points can be logged, graphed, or emailed. The logs are saved on the probe, and the app, and can be emailed for easy insertion into commissioning reports. Measurements are also shown on the handheld probe's local OLED display for convenience. Can take readings and store the data in its internal memory when the smartphone or tablet is out of range. The data is then uploaded to the app when the phone or tablet is back in range.

Kele Description

BLU-TEST DIFFERENTIAL PRESSURE, ALL SIX TOOLS IN B

Manufacturer

BAPI
