EL-GFX-2 | Lascar Electronics | Tools & Test Equipment

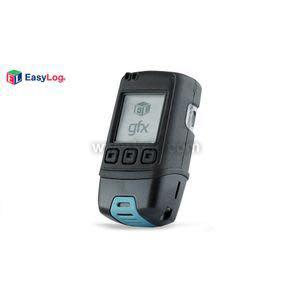

Temp & Humidity Data Logger W/ Graphic Screen
Brand:Lascar Electronics
MPN:EL-GFX-2
SKU:EL-GFX-2
List Price:
$375.00
Today's Price:
$195.00
Log in for customized pricingproduct specifications
Measurement Range
-30 to 80 °C, -22 to 176 °F
Power Supply
1/2 AA 3.6V Lithium Battery
Type
RH/T
Response Time
10 s - 1hr
Resolution
0.1 °C, 0.2 °F
product series specifications
Supply Voltage: 3.6 Volt lithium battery (except EL-USB-RT)
EL-USB-RT: USB connection only
Battery Life: 1 year (depending on sample rate, ambient temperature, and alarm LED use)
LED Indication: Blinking for operation verification
Dimensions:
Maximum: 1.02" dia. x 4.9" (2.59 x 12.45 cm)
Weight: 0.22 lb (0.1 Kg)
Approvals: RoHS
Warranty: 1 year
product series features
- Compatible with Windows 2000®, XP® Vista® 32-bit and Windows 7® 64-bit
- Assign unique logger identity
- Set sample rate and alarm thresholds
- Choose delayed start time if required
- Download data in .txt format to be viewed as graph or exported to standard spreadsheet
more information & related documents
Series Description
The Lascar EL-USB Series Data Loggers measure and record a variety of parameters such as temperature, humidity, voltage, current and carbon monoxide. These data loggers are compatible with nearly all Building Automation Systems, BAS. Simply insert any data logger into your computer's USB port, name it, choose your required sampling rate and set high and low alarms. Logged data is displayed using FREE configuration and analysis software from Lascar.
Kele Description
TEMP & HUMIDITY DATA LOGGER W/ GRAPHIC SCREEN
Manufacturer
Lascar Electronics
EL USB 1 Datasheet
