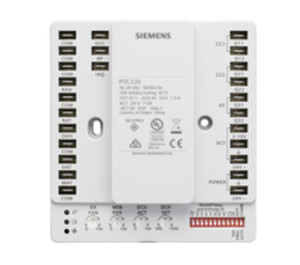

POL220.00 | Siemens Industry | Thermostats & Controllers
ECON CNTRL- PACK 20 0-10VDC REMOTE POTENTIOMETER
Brand:Siemens Industry
MPN:POL220.00
SKU:POL220.00
product specifications
Type
Stand-Alone
Supply Voltage (Nominal)
24 VAC
product series specifications
Supply Voltage: 24 VAC ±25% 50/60Hz
Power Consumption: 4 VA
Operating Temperature: -40°F to 149°F (-40°C to 65°C)
Operating Humidity: 5 to 95% RH (non-condensing)
Weight: 0.49 lbs.
Approvals: UL Listing UL 873, cUL LIsted per CSA - C22.2 No. 24, CE
Dimensions: 5.10" x 4.70" x 1.10"
Warranty: 2 years
product series features
- Wide temperature and BTU selection range
- Single or dual temperature or enthalpy control
- LED indication
- Quick connection of I/O through spade terminals
- Clearly marked potentiometer adjustments
- Auto detection of sensor I/O
- Small Footprint
- Commissioning mode setting
- DCV operation incorporating CO2 sensors
- Occupancy input with default capability
more information & related documents
Series Description
The Siemens POL220 Economizer Controller Series allows the use of unconditioned outside air to cool a building. The Free Cooling air determination is based on customer temperature and humidity selections, as well as optional Demand Control Ventilation (DCV) strategies with CO2 level selection.
Kele Description
ECON CNTRL- PACK 20 0-10VDC REMOTE POTENTIOMETER
Manufacturer
Siemens Industry
Related Documents
Economizer POL220 User Guide
