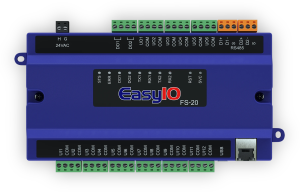

EASYIO-FS-32 and EASYIO-FS-20

Power supply: 24V AC +/- 5% or 24V DC +20% / - 15%

Power: 18VA

Power consumption: 750 mA at 24VAC/VDC 500mA at 24VAC/VDC

Storage temperature: -20 to 85°C (-4 to 185°F)

Operating temperature: 0 to 65°C (32 to 150°F)

Operating humidity: 10% to 90% relative humidity (non-condensing)

Dimensions: 234 x 104 x 44 (mm); 198 x 104 x 44 (mm)

Material: Plastic in acc. with UL

Weight: 436g

Main processor: 1.2 GHz Quad Core ARM A7

Processor: ARM Cortex A0 48 MHz

Flash Memory: 8 GB

RAM: 512 MB

SD card holder: Yes, for data backup

Ethernet: 1 x Ethernet Port 10Mb/100Mb; 10Base-T/ 100Base-T interface, half or full duplex

RS 485 interfaces: 2 x RS485 (connection 1 is BACnet, connection 2 is Modbus)

Real-Time Clock (RTC): Real-Time Clock with at least 5 days of backup using SuperCAP

Power failure protection: SuperCap Apps Safety Backup

Network security standard: IPv6, IPv4, DHCP Client, SSL, TLS 1.3, 802.1x; VPN Client and Server

Database and API: MQTT, SQL database and RESTful API

Supported protocols: BACnet MS/TP Client/Server, BACnet IP Client/Server, Modbus RTU M/S, Modbus, TCP M/S, MQTT, TCOM, SOX

E-mail Service: SMTP protocol (outgoing e-mail) with SSL encryption

Time synchronization Network:Time Sync Protocol

Modbus Baud Rate: Speed (9.6K, 19.2k, 38.4K, 57.6K), Data Bits 8, Parity Odd, Even, None

BACnet Baud Rate Speed: 9.6K, 19.2k, 38.4K, 76.8K

Approvals: CE, BTL, UL, FCC, RoHS, UKCA

Engineering Tool: CPT

Annual Maintenance: Included
