TE226 | Spartan Peripheral Devices | Thermostats & Controllers
TSTAT/PROG/LCD/5+1+1/PI-CONTROL
Brand:Spartan Peripheral Devices
MPN:TE226
SKU:TE226
List Price:
$321.00
Today's Price:
$166.92
Log in for customized pricingproduct specifications
Type
Programmable
Display
LCD Backlit
Set Point Range
-22 to 248 °F
Supply Voltage (Nominal)
24 VAC
product series specifications
Supply Voltage: 24VAC (+/-10%) 50/60 H
Accuracy: +/- 1.8°F (1.0°C) at 25°C and output off
Display Range: -22.0 - 248.0F (30 to 120.0°C) with suitable sensor
Display Resolution: 0.1 °C/°F
Set-Point Range: 32-122°F/ 0-50°C (default 10 - 30°C/ 50-86°F adj.) 0.5°C/°F per setting step
Set-Point Adjust: By up and down arrow buttons
Fan Button: To toggle between fan modes Auto/Run
Remote Sensor (RS) Input Interface: For connecting to external NTC Thermistor 10k ohm
Energy Savings Input (ESI) Interface: For saving energy by entering into unoccupied mode when ESI is triggered by Normally open (N.O.) or normally closed (N.C.) dry contact
Valve Control: On/Off output
Fan Control: 0-10V modulating output
Digital Output Signal: DOI, Terminal 3 for cooling valve; DO2, Terminal 5 for heating valve
Analog Output Signal: AO2, Terminal I2 for variable speed fan
Dimensions: 4.65"H x 3.70"W x 1.33"D (118 H x 94 W x 34 D mm)
Mounting: Mounts directly onto wall, panel, standard 65 x 65 mm junction box (hole pitch 60 mm) or standard 2 x 4" vertical junction box (hole pitch 83.5 mm)
product series features
- Backlit display for clear readability
- Pre-set programming (5-2, 5-1-1, or 7 day)
- On/off control of heating/cooling ouput
- Early fine tune to ensure temperature at scheduled time
- 12- or 24- hr format with battery backed day and time
- The fan CFM continuously delivers min. CFM once set point is reached
- CFM min and max arer set in in.Engineer Mode in.
- Full configurable parameters
- Proportional plus integral (PI) algorithm applied to modulating fan control
- Optional Remote sensor (RS) input interface for connecting to remote temp sensor
- Optional Energy Savings input (ESI) for connecting to muliple sources
- Adjustable unoccupied setpoints for heating and cooling
- Non-volatile memory (EEPROM) retains user settings during power loss with battery backup for 5 yrs
more information & related documents
Series Description

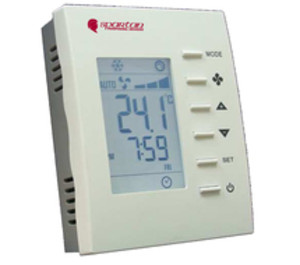

The Spartan TE226 is a controller for a Fan Coil Unit specifically designed to control two On/Off valves in sequence for heating/cooling, and a variable airflow ECM fan. It has a large backlit LCD screen showing room temperature or set point, time, day, and related status. The thermostat also has optional digital inputs for detection devices such as room occupied/unoccupied detector to enhance energy savings. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
TSTAT/PROG/LCD/ 5+1+1/PI- CONTROL
Manufacturer
Spartan Peripheral Devices
Related Documents
TE226 DATASHEET
