REM5000R1001/U | Resideo | Thermostats & Controllers

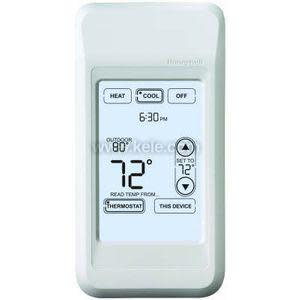

Portable Comfort Control
Brand:Resideo
MPN:REM5000R1001/U
SKU:REM5000R1001
product specifications
Type
Programmable
Weight
0.2
product series specifications
- Suppy Voltage:
- 24 VAC
- System Type:
- 4 heat/2 cool heat pump and up to 3 heat/2 cool conventional
- Sensor Type:
- :
- Temperature Onboard 20kΩ NTC
- :
- Humidity Capacitive
- Communication:
- RedLINK devices
- Baud Rate:
- 900 MHz frequency range
- Analog Input:
- EIM
- :
- 2 Universal inputs, temperature or dry contact selectable (not available with single- piece thermostat)
- Output:
- :
- EIM 7
- :
- Standalone 6 (USB on some models)
- Contact Rating:
- :
- EIM terminals W-O/B, Y, W3-Aux2, A-L/A Maximum Current 1.0A,
- :
- EIM terminals G, U1, U2, U3 Maximum Current 0.5A
- :
- EIM terminals W2-Aux1, Y2 Maximum Current 0.6A
- Temperature Sensor Accuracy:
- ± 1.5° at 70‚Ñâ (0.75° at 21‚ÑÉ)
- Temperature Setting Range :
- :
- Heating 40° to 90‚Ñâ (4.5° to 32‚ÑÉ)
- :
- Cooling 50° to 99‚Ñâ (10° to 37‚ÑÉ)
- Operating Temperature:
- :
- Thermostat 32° to 120‚Ñâ (0° to 48.9‚ÑÉ)
- :
- EIM -40° to 165‚Ñâ (-40° to 73.8‚ÑÉ)
- Operating Humidity:
- :
- Thermostat 5% to 90% condensing,
- :
- EIM 5% to 95% non-condensing
- Dimensions:
- :
- Thermostat
- :
- Prestige IAQ 4-1/2‚Ä=W x 3-1/2‚Ä=H x 7/8‚Ä=D (11.5 x 8.9 x 2.2 cm)
- :
- Prestige 2.0 6-13/16‚Ä=W x 3-7/8‚Ä=H x 1-7/16‚Ä=D (17.3 x 9.9 x 3.6 cm)
- :
- EIM 9.34‚Ä=H X 4.83‚Ä=W X 1.6‚Ä=D (23.7 x 12.3 x 4.1 cm)
- Measurement Range:
- Building material and content dependent
- Weight:
- 2.0 lbs (maximum item)
- Approvals:
- This device complies with Part 15 of the FCC Rules. (15.19, 15.21, 15.105)
- RoHS Statement:
- Yes
- Warranty:
- 5 years (excludes batteries)
product series features
- 60% smaller than Prestige 2.0 and available in 4 colors
- Delta T Alerts and Diagnostics inform customers when their system is not operating as expected
- Residential or light commercial use
- User Interaction Log provides a searchable history of setting changes
- Assignable outputs for indoor air quality and staging control
- Selectable staging options
- Customizable service reminders
- Up to 4H/2C heat pump or 3H/2C conventional systems
more information & related documents
Series Description
The Prestige High Definition (HD) Color Touchscreen Thermostat provides control of 24 VAC of heating and cooling systems. RedLINK enabled to work with compatible wireless accessories. These newly updated thermostats come in a variety of colors and can be accessed via the internet or through the mobile app available from Honeywell. The new Prestige is on the leading edge of design and remote access when it comes to thermostats for both residential and light commercial applications. Check out the entire line for one that fits your application.
Kele Description
TSTAT/REMOTE CONTROL FOR PRESTIGE
Manufacturer
Resideo
