70450 | Peco | Thermostats & Controllers

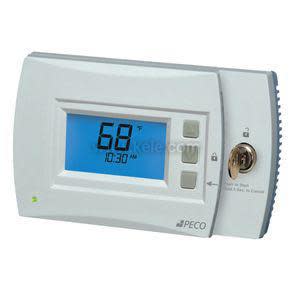

PECO PerformancePRO School Stat, Programmable, 3H/2C, 24 VAC or Batt Power
Brand:Peco
MPN:70450
SKU:T4932SCH-001
product specifications
Type
Programmable
Set Point Range
50 to 90 °F
Display
LCD Backlit
Controls Outputs
3H/2C
Supply Voltage (Nominal)
24 VAC
product series specifications
Supply Voltage: 24 VAC (20-30 VAC) 50/60Hz (±10%)
Output Voltage: 20-30 VAC
Output Current: 0.02 - 1.0 A per terminal; W1 (B/O), W2 (AUX), G, A, E, Y1, Y2. NOTE Total current draw must not exceed 2.5A.
Temperature Range: 50° to 90° F (10° to 32° C)
Additional Specifications: AA Batteries can be used for power (recommended for back-up)
Compatibility: SD card T8000 and T12000 Series, (must be 2 GB or less)
Differential: 1°F (0.5°C)
Display Type: Digital with blue backlight
Fan: Cycling (Auto) or Continuous (On); 1 speed
Fan Switching: Off-Heat-Cool-Auto-Emergency (Emergency not available on T4000 models)
Lockout: Keypad with 3 digit code capability
Remote Sensor: 10K Type II
Switch Type: Push button (selectable)
System Type: Conventional or Heat Pump
Operating Temperature: 0° to 120°F (-17° to 48°C)
Operating Humidity: 5% to 95% RH, Non-condensing
Dimensions: 4.3"H x 5.7"W x 1.3"D (10.92 x 14.48 x 3.3 cm)
Weight: 1.1 lb (0.49 Kg)
Approvals: ASHRAE 90.1 AND CA Title 24 Building Code Compliant
Warranty: 5 years
product series features
- 7 day, 5-1-1, 5/2 day programmable, or non-programmable modes
- Keypad lockout feature
- Occupancy sensor input
- 365 Day programmable calendar
- Holiday scheduling
- Remote sensor input
- Outdoor air sensor input for T8000 and T12000
- SD Card programming option on T8000 and T12000
- Blue backlit display
- 24 VAC or battery powered
- Terminal block wiring connections
more information & related documents
Series Description
Peco offers a wide range of programmable and non-programmable thermostats to meet your needs. The T4500 Series thermostats offer single or multistage heating and cooling. The T4900 Series offer up to 3 stages of heating and 2 cooling. Both series come with 24vac power or battery power options. The T8000 Series offer multistage heating and cooling with a large digital display. The T12000 Series can be used in single stage or multistage heating and cooling applications and it comes with a touchscreen display.
Kele Description
T-STAT/PROG/3H/2C/24 VAC OR BATT POWER
Manufacturer
Peco
