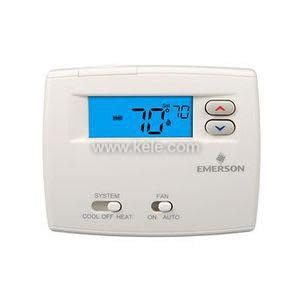

78671010081 | White-Rodgers | Thermostats & Controllers
Thermostat/HP/Non-Programmable/Classic Display
Brand:White-Rodgers
MPN:78671010081
SKU:1F89-211
product specifications
Type
Non-Programmable
Set Point Range
45 to 90 °F
Display
LCD Backlit
Controls Outputs
2H/1C
Supply Voltage (Nominal)
24 VAC
product series specifications
- Supply Voltage:
- 24VAC
- Input Current:
- 0.05 to 1.2 Amps (load per terminal)
- Temperature Range:
- 32 to +105‚Ñâ (0 to +41‚ÑÉ)
- Setpoint Range:
- 45° to 99‚Ñâ (7 °to 37 ‚ÑÉ)
- Operating Temperature:
- 32 to +105‚Ñâ(0 to +41‚ÑÉ)
- Materials Of Construction:
- ABS Plastic
- Mounting:
- any except upside down
- Dimensions:
- 1F89-211 and 1F86-344:
- 6-3/8‚Ä=Lx4-1/4‚Ä=Hx1 3/4‚Ä=D,
- 1F86-0471 and 1F83-0471 4-2/5‚Ä=Lx3 2/5‚â•Hx2 1/8‚Ä=D, :
- 1F83-0422 5-1/8‚Ä=Lx3-2/5‚Ä=Hx1 1/4‚Ä=D,:
- 1F89-0211 and 1F86-0244 4-4/5‚Ä=Lx3-4/8‚Ä=x1 3/4‚Ä=D, :
- 1F86EZ-02516-1/4‚Ä=Lx4-1/4‚Ä=Hx1 3/4‚Ä=D:
- Weight:
- 1F89-211, 1F86-0244 and 1F86-344 :
- 0.65 lbs,
- 1F86-0471, 1F86ST-0471 and 1F83-0471 0.85 lbs ,:
- 1F83-0422 1.05 lbs :
- 1F86EZ-0251 0.55 lbs:
- Approvals:
- NA
- Warranty:
- 5 years
- Accuracy:
- ±1°
- Additional Specifications:
- Non-programmable
- Control Type:
- Low Voltage Thermostat
- Deadband:
- 1°
- Differential:
- 1°
- Display Type:
- LCD
- Enclosure:
- NEMA 1
- Fan Switching:
- Yes
- Storage Temperature:
- 1F89-211and 1F86-344:
- -4° to 150 ‚Ñâ (-20° to 65‚ÑÉ ),
- System Type:
- 1F89-211 and 1F89-0211 :
- Heat Pump,
- 1F86-344, 1F86-0471, 1F86ST-0471, 1F86-0244,1F86EZ-0251 Single Stage, :
- 1F83-0471and 1F83-0422 Universal - SS, MS or HP:
- Wiring Terminations:
- 1F89-211:
- R, C, Y, W2, G, O/B, L, E,
- 1F86-344 RC, RH, C, W, Y, G, O, B,:
- 1F86-047, 1F86-0244,1F86EZ-0251 RC, RH, C, W, Y, G, O/B,:
- 1F83-0471 RC, RH, C, G, W/E, W2, Y, Y2, O/B, 6, L,:
- 1F83-0422 R, C, Y, W2, G, O/B, L,:
- :
product series features
- Digital Display
- White Rodgers Classic White Color
- Easy Terminal Connections
- Options Ranging from HP to MS
- Fossil Fuel option on most models
more information & related documents
Series Description
The 1F83, 1F86, and 1F89 series thermostats span across the 2 inch, 4 inch, and Classic green diplay families of White Rodgers thermostats. The 1F83 series is in the 4 inch Blue display family and is a universal model configurable for single stage, multistage, or heat pump systems. The 1F86 series is available in all three families configurable for single stage or heat pump. The 1F89 series comes in the 2 inch Blue and Classic families and is a heat pump only model. White Rodgers offers one of the widest selection of thermostats available and Kele has most of them available for shipping same day.
Kele Description
TSTAT/HP/NON-PROG/CLASSIC DISPLAY
Manufacturer
White-Rodgers
