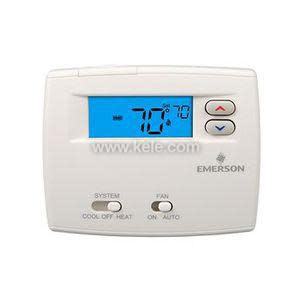

78671052026 | White-Rodgers | Thermostats & Controllers

Supply Voltage: 24VAC

Input Current: 0.05 to 1.2 Amps (load per terminal)

Temperature Range: 32 to 105°F (0 to 41°C)

Setpoint Range: 45° to 99°F (7 °to 37°C)

Operating Temperature: 32 to 105°F (0 to 41°C)

Material of Construction: ABS Plastic

Mounting: any except upside down

Dimensions: See Data Sheet for dimensions

Weight:

1F89-211, 1F86-0244, and 1F86-344: 0.65 lbs

1F86-0471, 1F86ST-0471, and 1F83-0471: 0.85 lbs

1F83-0422: 1.05 lbs

1F86EZ-0251: 0.55 lbs

Warranty: 5 years

Accuracy: ±1°

Control Type: Low Voltage Thermostat

Deadband: 1°

Differential: 1°

Display Type: LCD

Enclosure: NEMA 1

Fan Switching: Yes

Storage Temperature:

1F89-211 and 1F86-344: -4° to 150°F (-20° to 65°C )

System Type:

1F89-211 and 1F89-0211: Heat Pump

1F86-344, 1F86-0471, 1F86ST-0471, 1F86-0244, 1F86EZ-0251: Single Stage

1F83-0471and 1F83-0422: Universal - SS MS or HP

Wiring Terminations:

1F89-211: R C Y W2 G O/B L E

1F86-344: RC RH C W Y G O B

1F86-047, 1F86-0244, 1F86EZ-0251: RC RH C W Y G O/B

1F83-0471: RC RH C G W/E W2 Y Y2 O/B 6 L

1F83-0422: R C Y W2 G O/B L
