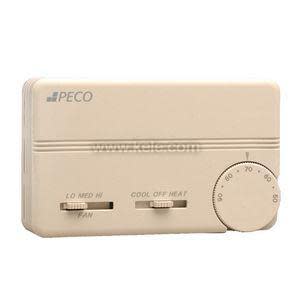

PECO Fan Coil Thermostat
Brand:Peco
MPN:68605
SKU:TA155-047
product specifications
Type
Non-Programmable
Set Point Range
50 to 90 °F
Display
Mechanical
Controls Outputs
1H/1C
Supply Voltage (Nominal)
277 VAC
product series specifications
T155
Supply Voltage: 24-277 VAC
Supply Current: 25 mA @ 24 VAC
Output Capacity: 10 VA @ 24 VAC, 20 VA @ 120-277 VAC
Control Type: Two position
Differential: 1°F (0.5°C)
Deadband: 4°F (2.2°C) (TB155 only)
T167
Supply Voltage: 24 VAC
Supply Current: 25 mA
Control Type: Proportional
Proportional Band: 2°F (1°C)
Control Output: 0-10 VDC, 1 kO min
Deadband: 0-10V actuator 0°F (possible H and C output ON), 2-10V actuator 0.8°F (0.44°C)
General: Fan/System Switch Rating 24 VA @ 24 VAC, 125 VA @ 120-277 VAC
Setpoint: 50° to 90°F (10° to 32°C)
Operating Temperature: 32° to 130°F (0° to 55°C)
Construction: Flame-retardant PVC
Color: Cool gray
Weight: 0.28 lb (0.13 Kg)
Approvals: UL Listed File #E50023, CE
Warranty: 5 years
product series features
- Electronic design performance
- Two-position and Proportional models
- Remote sensor capability
- Fan and system switching models
- degrees F scale standard
- degrees C or warmer/cooler dials available
- Setpoint stops available
more information & related documents
Series Description
The T155 Series Line and Low Voltage Two-Position Thermostat is a general purpose, electronic, two-position line-voltage and low-voltage thermostat. The T167 Series Proportional Thermostat is a 0 to 10 volt DC proportional heating/cooling low voltage thermostat. Both are designed for a variety of two- and four-pipe, heating and cooling HVAC applications and for Building Automation Systems, BAS. Both manual and automatic changeover models include a provision for a remote thermistor temperature sensor.
Kele Description
24-277 VOLTAGE H OR C TRIAC/HOR-VER COVERS
Manufacturer
Peco
