68471 | Peco | Thermostats & Controllers
Industrial NEMA 4X Thermostat
Brand:Peco
MPN:68471
SKU:TF115-001
product specifications
Type
Line-Voltage
Display
Mechanical
Controls Outputs
SPDT
Supply Voltage (Nominal)
120 VAC, 240 VAC
product series features
- Good for both heating and cooling
- Rugged, weather resistant NEMA 4X enclosure
- Tolerates moist conditions
- One SPDT switch on T115 models
- Two SPDT switches on TH109 models
- UL FIle #E50023
more information & related documents
Series Description

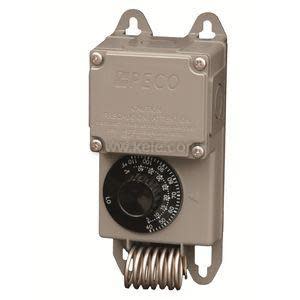

The Peco TF115-023, TH109-009, TRF115-005, and TRF115-007 industrial control thermostats offer reliable control in industrial, agricultural, and commercial applications. The TH109-009 has 40-100„‰ range with a molded plastic enclosure and stainless steel hardware. The TF115-023 has a low mass, high surface area stainless steel coiled sensor which provides rapid temperature response. Both the TRF115-005 and TRF115-007 both have remote bulbs with capillary tubes. All of these thermostats come with SPDT switches and are NEMA 4X, UL listed, and are suitable for use under NEC article 547.
Kele Description
NEMA 4X TSTAT/SPDT/40-110F/COILED BULB/SS
Manufacturer
Peco
