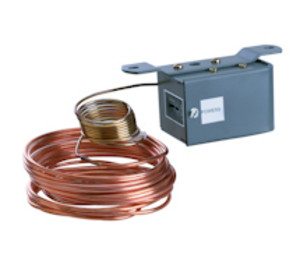

* product series image displayed

134-1085 | Siemens Industry | Thermostats & Controllers

TSTAT, ELECTRIC LINE VOLT, CONCEALED OR EXPOSED, HEAT AND COOL

Brand:Siemens Industry

MPN:134-1085

SKU:134-1085

List Price:

$467.00

Today's Price:

$242.84

Lead time of 2 days. Chat with Kele experts now

product specifications

Type

Wall

Set Point Range

40 to 90 °F

Controls Outputs

SPDT

Supply Voltage (Nominal)

120 VAC, 240 VAC

product series specifications

Supply Voltage: 16A @ 120 VAC, 9.2A @ 208 VAC, 8A @ 240 VAC, Pilot duty 125 VA @ 24-277 VAC

Supply Current: See Table 1 in Datasheet

Sensing Element: 4 ft.

Setpoint range: 35°F to 45°F

Control type: SPDT

Differential

134-1510: 12°F (6.7°C) Automatic reset

134-1511: Temperature must be 12°F (6.7°C) above cutout point before control can be reset

Mounting: 8" x 4" Sheet Metal Plate

Dimensions: 5-3/8"H x 2-5/16"W x 2-5/16"D

Weight: 1.8 lbs.

Approvals: UL file SA3863, CSA File LR948

product series features

Compact and sturdy
Adjustable range with fixed differential
Unaffected by ambient temperature at case
Manual or automatic reset available
The set point adjustment screw is accessible at the bottom of the control or at the top with the cover removed
Mounting bracket standard

more information & related documents

Series Description

The Siemens ET 134 Low Temperature Detection Thermostat Series is a remote bulb instrument with a Single-Pole Double-Throw (SPDT) switch which closes and opens a circuit in both directions. This thermostat has a limited vapor charge since its liquid volume is less than the volume of 12 inches (305 mm) length of the bulb. When at least 12 inches (305mm) of the bulb is exposed to a temperature of at least 1°F (0.6°C) below the thermostat set point, the charge begins to accumulate and condense in this section. The condensing charge creates a vacuum into which the remaining charge is drawn and also condensed. When both liquid-vapor surfaces are within a 12-inch (305 mm) length, the vapor pressure in the thermal system and the bellows decrease until the electrical contacts open.

Kele Description

TSTAT, ELECTRIC LINE VOLT, CONCEALED OR EXPOSED, HEAT AND COOL

Manufacturer

Siemens Industry
