TC-1101 | Schneider Electric Buildings | Thermostats & Controllers

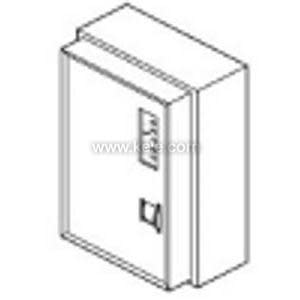

Two-Position Electric Duplex Thermostat, SPDT Snap Action Switch, 55-85F (Includes Inserts to Convert to -400 and -404)
Brand:Schneider Electric Buildings
MPN:TC-1101
SKU:TC-1101
List Price:
$506.00
Today's Price:
$263.12
Log in for customized pricingproduct specifications
Type
Wall
Display
Mechanical
Stages
Two Stage
System Switching
No
Fan Switching
Yes
Differential
2F
Controls Outputs
Relay
Supply Voltage (Nominal)
277 VAC
product series specifications
Supply Voltage: 24-240 VAC
Contacts Rating:
Cooling SPDT: 3.0A @ 24/120V, 1.5A @ 240V
Heating SPDT: 4.4A @ 24/120V, 2.2A @ 240V
Pilot Duty: 40 VA @ 24V, 210 VA @ 120/240V
Control Type: Two-position, on/off
Sensor: Bimetal snap acting
Range Limits: Dial stop pins
Differential: 2°F (1°C)
Connections: 6.0" (15.24 cm) leads, 14 AWG
Mounting: Vertical, 2" x 4" (5.1 x 10.2 cm) switch box
Dimensions: 4.38" H x 2.86" W x 1.63" D (11.13 x 7.26 x 4.14 cm)
Weight: 0.8 lb (0.36 Kg)
Approvals: UL File #E9429
Warranty: 2 years
product series features
- High and low voltage
- Thumbwheel set point
- UL listing
- Plates with set point or blank cover
- Fits standard single-gang switch box
more information & related documents
Series Description
The TC-1100 Series Two-Position Room Thermostats are two-position, single-pole, double-throw room thermostats for HVAC applications and Building Automation Systems, BAS. These room thermostats are designed for single-stage heating or single-stage cooling. The TC-1100 Series thermostat comes in three set point spans to cover most any application: 55 to 85F, 45 to 75F, and 75 to 105F. The TC-1100 Series thermostat comes standard with thermometer and set point as shown. It is also packaged with cover plates for set point only or for blank cover.
Kele Description
ELECTRIC 2-POS ROOM T'STAT
Manufacturer
Schneider Electric Buildings
Related Documents
TC-1100 Series Installation Data
