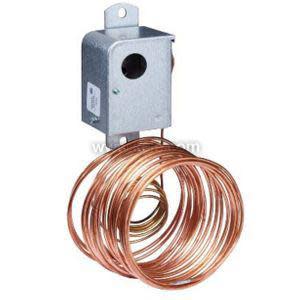

Compact gray thermostat enclosure with a mounting tab, attached to a long coil of copper tubing.

A11E-6C | Johnson Controls | Thermostats & Controllers

Auto Reset Low Temp, Diff 12, 4' Cap, SPDT, Bracket 1/8" X 20' Avg

Brand:Johnson Controls

MPN:A11E-6C

SKU:A11E-6C

List Price:

$750.00

Today's Price:

$390.00

product datasheet

installation instructions

catalog page

Lead time of > 15 days. Chat with Kele experts now

product specifications

Stages

Single

System Switching

Fan Switching

Controls Outputs

SPDT

Type

Low Limit

Differential

12F

Set Point Range

35 to 45 °F

product series specifications

Sensing Element: 20' (6 m) of 1/8" copper tube

Capillary: 4' (1.2 m)

Contact Type: SPST, N.C.

Action: N.C. opens on decrease in temp

Contact Rating: 16A @ 120 VAC, 9.2A @ 208 VAC, 8A @ 240 VAC

Pilot duty: 125 VA @ 24-277 VAC

Range: 35° to 45°F (2° to 7°C)

Setpoint Adjust: Slot screwdriver

Differential: A11A: 12°F (6.7°C) manual reset; A11B 12°F (6.7°C) auto reset

Sensor: R-134A vapor filled

Operating Temperature: 0° to 140°F (-18° to 60°C)

Element: 250°F (121°C) maximum

Dimensions: 3"H x 5.4"W x 2.4"D (7.6 x 13.7 x 6 cm)

Weight: 1.75 lb (0.79 Kg)

Approvals: UL Listed, File#SA516; CSA certified, File#LR948

Warranty: 1 year

product series features

Snap-acting contacts
External temperature scale
Easy set point adjustment
Unaffected by ambient temperature at the control and 4ft (1.2m) capillary

more information & related documents

Series Description

The A11 Series Low Temperature Limit Controls incorporate a 20ft (6 m), vapor-charged sensing element for HVAC applications and Building Automation Systems, BAS. The low temperature sensor reacts to the coldest 16in (40.6 cm) section of the control's sensing element. It is suitable for monitoring the trailing face of a coil for freeze protection.

Kele Description

TEMP CTRL/A-RESET/LOW/DIFF 12/4 CAP/SPDT/1HP/BRKT

Manufacturer

Johnson Controls
