Temperature Sensor: PT1000 RTD

Range: -40 to 140°F (-40 to 60°C)

Temperature Operating Limits: -40 to 302°F (-40 to 150°C)

Accuracy: ±0.5°C @ 25°C

Thermal Effect: ±0.01%/°C

Response Time: 100 ms

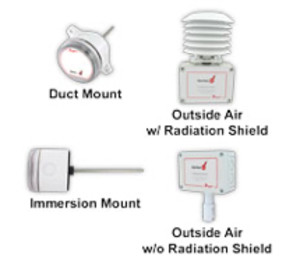

Wetted Materials: 304 SS (probe), polycarbonate (housing); Duct and immersion models Neoprene (gasket); Outside air models Nylon (insert), silicone (O-ring)

Process Connection: 1/2" NPT (immersion models only)

Electrical Connection: Removable terminal block, knocks out for conduit fitting

Conduit Connection: 1/2" NPT

Probe Lengths: 2.5 to 18" (depending on configuration)

Power Requirements: 13 to 36 VDC for current models, 13 to 36 VDC or 16 to 28 VAC for voltage models

Output Signal: 4 to 20 mA or 0 to 10 VDC (depending on model)

Enclosure Rating: NEMA 4X (IP66) (immersions models require thermowell)

Weight: 5.11 oz, 145 g (duct/immersion); 8.4 oz (238 g) (OSA without radiation shield); 1 lb 7.4 oz (663.4 g) (OSA with radiation shield)

Approvals: CE, RoHS

Warranty: 5 years
