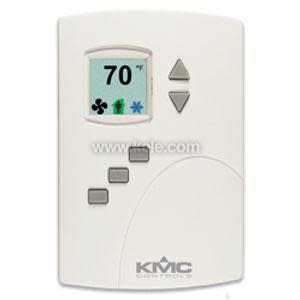

BAC-4001CW0002 | KMC Controls | Thermostats & Controllers

Screen: Type Active color LCD with LED back lighting, 128 x 128 pixels

Dimensions: 1.00" x 1.04" (25 x 26 mm)

Case Material:

White flame-retardant plastic

Mounting Backplate mounts to a standard 2" x 4" vertical handy-box or Euro style box. The controller is secured to the backplate with a concealed Allen screw.

Environmental Limits

Operating: 32° to 140°F (0° to 49°C)

Shipping: -40° to 160°F (-40° to 71°C)

Humidity: 0 to 95% RH non-condensing

Supply Voltage: 24 VAC (-15%, +20%), 50-60 Hz, 12 VA, Class 2 only, non-supervised (all circuits, including supply voltage, are power limited circuits)

Inputs and Outputs: All inputs and outputs for the AppStat are set up at the factory and do not require set up in the field.

Inputs: Analog inputs for discharge air temperature, water supply temperature, outside air temperature, fan status, and remote temperature sensor

Sensors are automatically detected

Inputs accept industry-standard 10K ohm Type II for space, 10K ohm Type III for duct

Input overvoltage protection up to 24 volts AC, continuous

12-bit analog-to-digital conversion

Relay Outputs

All relay outputs are normally open, SPST, Form "A" relays

1 Ampere maximum per relay at 24 volts AC or DC for each output. Maximum for all relay outputs is 3 amperes (72VA)

Analog Outputs

Short-circuit protected

Loads up to 10 mA at 0-12 VDC

8-bit PWM digital-to-analog conversion

Connections

Screw terminal blocks, wire size 14-22 AWG, for inputs, outputs, power, and network connections.

BACnet communication

Integral peer-to-peer BACnet MS/TP network communications.

Network speed from 9600 to 76,800 baud

Automatic baud detection.

Screw terminal block mounted to backplate. Wire size 14-22 AWG

Front panel selection for device instance, MAC address, and baud rate

Meets or exceeds ANSI/ASHRAE BACnet Standard 135-2008 for Application Specific Controllers.

Accuracy-Temperature Only Models

Type: Thermistor

Accuracy: ±0.36°F(±0.2°C)

Resistance: 10,000O at 77°F(25°C)

Operating Range: 48° to 96°F (8.8° to 35.5°C)

Accuracy-Temperature and Humidity Models

Temperature Sensor

Type: CMOS 10K Type II Space, 10K Type III Duct

Accuracy: ±0.9°Foffset (±0.5°C) from 40° to 104°F (4.4° to 40°C)

Resolution: ±0.1°F(±0.1°C)

Operating Range: 36° to 120°F (2.2° to 48.8°C)

Response time: 5 to 30 seconds

Remote: 10KO Type II for Space, 10KO Type III for Duct

Humidity Sensor

Type: CMOS

Humidity: 0 to 100% RH

Accuracy @ 25°C: ± 2% RH (10 to 90% RH)

Response Time: 4 seconds or less

Regulatory approvals

UL 916 Energy Management Equipment, File #E145832

FCC Class A, Part 15, Subpart B and complies with Canadian ICES-003 Class B

BACnet Testing Laboratory listed

SASO PCP Registration KSA R-103260

Motion Sensor

Detector Type: Passive infrared

Range:33' (10 m)

Dimensions: 5.12" H x 3.50" W x 1.13" D (130 x 89 x 29 mm)

Weight: 0.38 lb (0.17 Kg)

Warranty: 5 years
