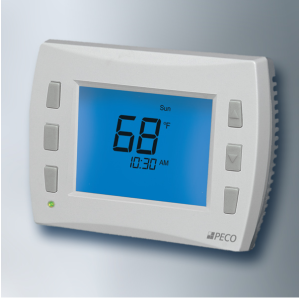

T8168-1 | Peco | Thermostats & Controllers
1H/1C 2-ON/OFF, W/FAN O/H/M/L, SYS H/O/C/A
Brand:Peco
MPN:T8168-1
SKU:T8168-1
List Price:
$496.00
Today's Price:
$257.92
Log in for customized pricingproduct specifications
Type
Programmable
Display
Digital Backlit
Supply Voltage (Nominal)
24 VAC
product series specifications
Output Ratings
Y1, Y2, W1, W2, G, G1:
24 VAC (20-30 VAC); 50/60 Hz
10 VA
WD, GD, YD:
0-10 VDC Loads must be 1.2K ohms minimum
4-20 mA Loads must be 600 ohms maximum
Temperature Control Range: 50° to 90° F (10° to 32° C)
Differential: 1° F (0.5°C)
Input Power: 24 VAC (20-30 VAC) 50/60 Hz (+/- 10%)
Operating Temperature: 0° to 120°F (-18° to 49°C)
Operating Humidity: 5% to 95% RH, non-condensing
Physical Dimensions: 4.3"H x 5.7"W x 1.3"D
Terminal Connections: 14-24 AWG stranded or solid wire
Proportional Output Band Width: 2°F (1°C)
Proportional Stroke Time: Default 2 Minutes (Configurable)
product series features
- Remote, Local or Averaged Temperature Sensing
- Control for Relays, Valves and Dampers
- Non-Programmable or Programmable Operation
- Keypad Lock out with PIN
- Seasonal Summer-Winter Change Over for Fan Coils
- Fan Coil 2-Pipe/4-Pipe Settings
- Multiple Fault Notifications
- Door Open Shut Down
- Occupancy based Fan Selection
- Holiday Scheduling
- NO/NC Heat W1 configuration
- Models available with Wi-Fi and BACnet
more information & related documents
Series Description
The T8168 Thermostat delivers precision digital outputs for valves, dampers, relays, and fans. Easy single set point technology provides simple accurate control of temperature settings.
Kele Description
1H/1C 2-ON/OFF, W/FAN O/H/M/L, SYS H/O/C/A
Manufacturer
Peco
