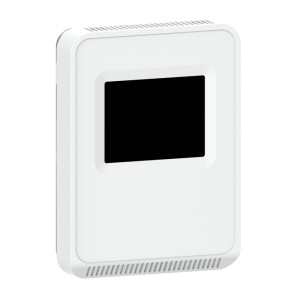

TW2TPXA | Veris | Temperature Sensors & Transmitters
SENSOR, TEMP, WALL, TOUCHSCREEN, TRANSMITTER, BACNET/MODBUS
Brand:Veris
MPN:TW2TPXA
SKU:TW2TPXA
product specifications
Enclosure Rating
NEMA 1
Application
Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment
Sensor Element
TRANSMITTER, BACNET/MODBUS Thermistor
Setpoint
Yes
Type
Transmitter
Display
Yes
product series specifications
Input Power: Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz
Analog Output Selectable: 4 to 20 mA, 0 to 5 V, 0 to 10 V
Operating Temperature Range: 0 to 50 °C (32 to 122 °F)
Operating Humidity Range: 0 to 95% RH non-condensing
Housing material: High-impact ABS plastic
Terminal Block Torque: 0.5 to 0.6 N-m (0.37 to 0.44 in-lbf)
Temperature Transmitter Option:
Sensor Type: Solid state, integrated circuit
Accuracy: ±0.2°C (±0.4°F) typical
Resolution: 0.1°C (0.1°F)
Range: 0 to 50°C (32 to 122°F)
Wiring Terminals:
Terminal Blocks: Screw terminals, 18-24 AWG
Screw Terminal: Torque 0.2 N-m (2.0 in-lbF) max.
Warranty: Limited Warranty 5 years
product series features
- Flexible
- Calibration-free
- Easy to install
more information & related documents
Series Description
The Veris TW2 Series of temperature sensors for living space is a versatile sensor platform for use with BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, or 0 to 10Vdc outputs. The TW2 Series sensors are available with three user interface options: touchscreen, LCD with three buttons, and blank.
Kele Description
SENSOR, TEMP, WALL, TOUCHSCREEN, TRANSMITTER, BACNET/MODBUS
Manufacturer
Veris
Related Documents
TW2 Datasheet
