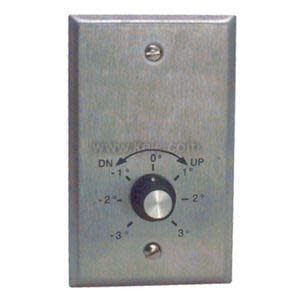

ST-S3-XA-1500 | Kele | Temperature Sensors & Transmitters
Wall Stainless Steel Plate Sensor 10K Ohm 3 Thermistor 1.5Kohm Setpoint
Brand:Kele
MPN:ST-S3-XA-1500
SKU:ST-S3-XA-1500
product specifications
Enclosure Rating
NEMA 1
Application
Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment
Probe Length
None
Sensor Element
10K Type 3 Thermistor
Setpoint
Yes
Type
Thermistor
Display
No
Output Signal
Resistance
product series specifications
Accuracy: ±0.36°F (0.2°C)
Thermistor: ±0.36°F (0.2°C)
RTD:
Type 63: ±0.72°F (0.40°C)
Type 71: +/-0.0774°F (0.043°C)
Type 81, 85: ±0.27°F (0.15°C)
Type 91: ±0.54°F (0.30°C)
Sensor Type:
Thermistor: 2.252 kO, 3 kO, 10 kO Type II, III & III w/11K shunt, 20 kO, 100 kO
RTD:
Type 63: 1000O Nickel
Type 71, 81: 100O Pt 385 Curve
Type 85: 1000O Pt 385 Curve
Type 91: 1000O Pt 375 Curve
Temperature Range:
Thermistor/RTD: -40° to 221°F (-40° to 105°C)
Temperature Coefficient:
Thermistor: Negative temperature coefficient
RTD: Positive temperature coefficient
Temperature Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD: Max 0.04% after 1k hours @ 500 °F
Heat Dissipation: 2.7 mW/°C (power needed to raise the temperature by 1°C)
Enclosure Rating: NEMA 1, Brushed stainless steel
Mounting: Directly to duct, wall, or single gang box
Wiring Terminations: 8' (2.4m) of 24 AWG pigtails with pre-stripped ends, type 71 & 81 have 18" leads
Weight: 0.2 lb (0.1 Kg)
Approvals: CE
Warranty: Lifetime
product series features
- Lifetime warranty
- ±0.36 degrees F (0.2 degrees C) thermistor accuracy
- ±0.27 degrees F (0.15 degrees C) or 0.54 degrees F (0.30 RTD degrees C) RTD accuracy
- Wide selection of thermistor and RTD curves
- Insulated backing for room temperature response
- Vandal-resistant flush mounting
- Adaptable with many options
- 430 Stainless steel finish
- Easy to mount to wall or back box
- Standard size plate to cover mounting holes
more information & related documents
Series Description
The Precon Model ST-S Stainless Steel Flush Mount Sensor from PreCon provides precise room temperature sensing for Building Automation Systems, BAS, and HVAC applications. The active sensing element is made of a highly stable precision thermistor material or Platinum RTD. This material is ruggedized to provide moisture/vapor resistance and is bonded to a 430 stainless steel plate. The back is insulated to reduce interior wall temperature influence. This sensor is intended for interior use only.
Kele Description
WALL S/S PLATE SENSOR 10K OHM 3 THMS 1.5KOHM STPT
Manufacturer
Kele
