KTR3 | Kele | Temperature Sensors & Transmitters

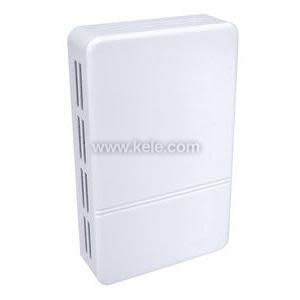

Kele Room Sensor 10,000Ω Thermistor @ 77°F (25°C), Type III
Brand:Kele
MPN:KTR3
SKU:KTR3
List Price:
$17.67
Today's Price:
$9.19
Log in for customized pricingproduct specifications
Accessory
T81U-XR, T85U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2
Application
Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment
Housing Material
Poly
Housing Style
Decorator
Sensor Element
10K Type 3 Thermistor
Setpoint
No
Type
Thermistor
Display
No
Output Signal
Resistance
product series specifications
Accuracy: Thermistor: ±0.50°F (±0.28°C); RTD: ±0.60°F (0.33°C)
Sensor Type:
Thermistor: 2.252kO, 3kO, 10kO Type II, III & III w/11K shunt, 20kO, 100kO
RTD:
Type 71, 81: 100O Pt 385 Curve
Type 85: 1000O Pt 385 Curve
Type 91: 1000O Pt 375 Curve
Temperature Range: Thermistor/RTD: -40° to 221°F (-40° to 105°C)
Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient
Temperature Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD: Max 0.04% after 1k hours @ 500°C
Heat Dissipation: 2.7 mW/°C (power needed to raise the temperature 1°C)
Enclosure Rating: NEMA 1, White plastic
Mounting: Directly to wall or single gang box
Wiring Terminations: Terminals
Weight: 0.2 lbs (0.09 Kg)
Approvals: CE
Warranty: 3 Years
product series features
- Economical
- Attractive new design
- Three-year warranty
- ±0.5 degrees F (0.28 degrees C) accuracy
- Durable housing
- White color
- Thermistor or RTD
- Locking cover screws
more information & related documents
Series Description
The Kele Model KTR Room Temperature Sensor is a cost-effective room temperature sensor with an accuracy of ±0.5 degrees F (0.28 degreesC). The thermistor is made of a very stable, pre-aged material that offers the reliability needed in control systems. The platinum RTD comes in 100 ohm and 1000 ohm and is compatible with most HVAC systems and as part of a Building Automation Systems, BAS. All sensors come with a three-year warranty.
Kele Description
TEMP SENSOR, ROOM, 10K TYPE III, DECORATOR, NO SETPOINT, NO OVERRIDE
Manufacturer
Kele
Related Documents
KTR Datasheet
