KTP3 | Kele | Temperature Sensors & Transmitters

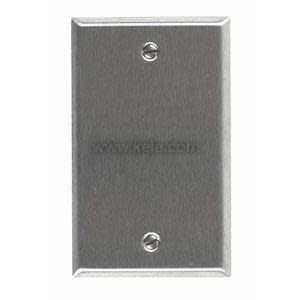

10,000Ω Flush-Mount Stainless Steel Plate Stainless Steel Plate Thermistor @ 77°F (25°C), Type III (gray leads)
Brand:Kele
MPN:KTP3
SKU:KTP3
product specifications
Accessory
T81U-XR, T85U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2, KT1
Enclosure Rating
NEMA 1
Application
Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment
Housing Material
Metallic
Housing Style
Stainless Steel Plate
Sensor Element
10K Type 3 Thermistor
Setpoint
No
Type
Thermistor
Display
No
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor: ±0.50°F (±0.28°C)
RTD: ±0.60°F (±0.33°C)
Sensor Type:
Thermistor: 2.252 kO, 3 kO, 10 kO Type II, III & III w/11K shunt, 20 kO, 100 kO
RTD:
Type 71, 81: 100O Pt 385 Curve
Type 85: 1000O Pt 385 Curve
Type 91: 1000O Pt 375 Curve
Temperature Range:
Thermistor/RTD: -40° to 221°F (-40° to 105°C)
Temperature Coefficient:
Thermistor: Negative temperature coefficient
RTD: Positive temperature coefficient
Temperature Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD: Max 0.04% after 1k hours @ 500°C
Heat Dissipation: 2.7 mW/°C (power needed to raise the temperature 1°C)
Enclosure Rating: NEMA 1, Brushed stainless steel
Mounting: Single gang back box
Wiring Terminations: 8', 24 AWG gray wire leads, type 71 & 81 sensors have 18" leads
Weight: 0.2 lb (0.10 Kg)
Approvals:CE
Warranty: 3 years
product series features
- Three-year warranty
- Wide selection of thermistor and RTD curves
- Insulated backing for room temperature response
- Vandal-resistant flush mounting
- Adaptable with many options
- 430 Stainless steel finish
- Easy to mount to wall or back box
- Standard size plate to cover mounting holes
more information & related documents
Series Description
The Kele KTP* Series Stainless Steel Flush-Mount Thermistor and RTD Sensors provide room temperature sensing for building automation systems. The active sensing element is made of a highly stable, thermistor material or platinum RTD. This design provides moisture/vapor resistance and is bonded to a 430 stainless steel plate. The back is insulated to reduce interior wall temperature influence. This sensor is intended for interior use only.
Kele Description
TEMP SENSOR, ROOM, 10K TYPE III, STAINLESS STEEL PLATE, NO SETPOINT, NO OVERRIDE
Manufacturer
Kele
