TE200AD8AS | Greystone Energy Systems | Temperature Sensors & Transmitters

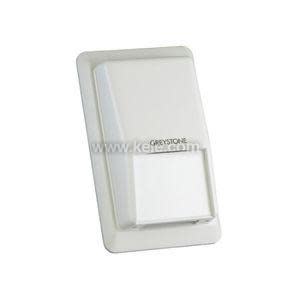

Designer Room Temperature Sensor, 2.252K Ω NTC Thermistor, ±0.2°C, Concealed Pushbutton Momentary Switch - N.O.
Brand:Greystone Energy Systems
MPN:TE200AD8AS
SKU:TE200AD8AS
product specifications
Accessory
T81U-XR, T85U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2
Enclosure Rating
NEMA 1
Application
Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment, Duct Temperature, Immersion Temperature, Outside Air Temperature, OSA
Housing Material
Poly
Housing Style
Executive
Override
Override
Probe Length
None
Sensor Element
2.2K Thermistor
Setpoint
No
Type
Thermistor
Display
No
Output Signal
Resistance
product series specifications
Accuracy: Thermistor: ±0.36°F (±0.2°C)
RTD: ±0.54°F (±0.3°C)
Sensor Type: Thermistor: 2,252O, 3,000O, 10,000O Type II & III, 20,000O
RTD: 100O Platinum 385 curve, 1,000O Platinum 385 curve
Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient
Operating Temperature: 32° to 122°F (0° to 70°C)
Enclosure Rating: NEMA 1, plastic
Wiring Terminations: 6 or more leads
Weight: 0.2 lb (0.09 Kg)
Approvals: CE, RoHS
Warranty: 5 years
product series features
- ±0.36 degrees F (±0.2 degrees C) thermistor accuracy
- ±0.54 degrees F (±0.3 degrees C) RTD accuracy
- Wide selection of thermistor or RTD curves
- Vented housing for quick temperature response
- Durable plastic housing and base plate
- Easy to mount to wall or electrical box
more information & related documents
Series Description
The Greystone Energy Systems Model TE200AD Series Executive Room Thermistor and RTD Sensor provides precision room temperature sensing for building automation systems. The active sensing element is made of a highly stable, precision thermistor material or platinum RTD.
Kele Description
WALL SENS DESG 2252K OHM THM CONCEALED OR
Manufacturer
Greystone Energy Systems
Related Documents
TE200 Datasheet 2016
