BA/T1K0TO130FB4SXXZCG5PTNIST | BAPI | Temperature Sensors & Transmitters

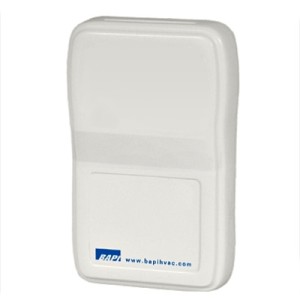

ROOM TEMP SENSOR, 1K OHM RTD, 4-20MA OUT, 0-130F
Brand:BAPI
MPN:BA/T1K0TO130FB4SXXZCG5PTNIST
SKU:BA/T1K0TO130FB4SXXZCG5PTNIST
List Price:
$373.00
Today's Price:
$193.96
Log in for customized pricingproduct specifications
Enclosure Rating
NEMA 1
Application
Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment
Probe Length
None
Sensor Element
1K Platinum RTD 385
Setpoint
Yes
Type
RTD
Display
No
Output Signal
Analog
product series specifications
Accuracy: Thermistor: ±0.36°F (0.2°C)
RTD:
385 Curve: ±0.27°F (0.15°C)
375 Curve: ±0.54°F (0.30°C)
Sensor Type:
Thermistor: 10 kO Type II & III
RTD: 100O, 1000O, 385 curve; 1000O, 375 curve
Temperature Range: 32° to 158°F (-0° to 70°C)
Stability:
Thermistor: < 0.036 F (0.02C) per year
RTD: 0.14°C with 6,000 continuous hours at 400°C
Heat Dissipation: 2.7 mW/°C (power need to raise the temperature 1C), 0.4°C/mW at 0°C
Enclosure Rating: NEMA 1, ABS plastic, UL94V-0
Mounting: Directly to wall or single gang box
Wiring Terminations: Terminals
Weight: 0.25 lb (0.1 Kg)
Approvals: CE, RoHS
Warranty: Lifetime
product series features
- ±0.36 degrees F (±0.2 degrees C) Thermistor accuracy
- ±0.27 degrees F (±0.15 degrees C) or ±0.54 degrees F (±0.30 RTD degrees C) RTD accuracy
- ±2.7 degrees F (±1.5 degrees C) semiconductor accuracy
- Lifetime limited sensor warranty
- Wide selection of thermistor, RTD, and semiconductor curves
more information & related documents
Series Description
The BA Series Room Sensors are designed specifically for HVAC applications. The room sensors come in a variety of enclosure styles, including Delta, PreCon, stainless steel plate, and BAPIstat II. Each room sensor is available with thermistor, RTD, and semiconductor sensors, which makes the BA sensors compatible with every Building Automation Systems, BAS, in use today.
Kele Description
ROOM TEMP SENSOR, 1K OHM RTD, 4-20MA OUT, 0-130F
Manufacturer
BAPI
BAPI Flush Room Installation Sheet
