BA/10K-2-SP-SEC1 | BAPI | Temperature Sensors & Transmitters

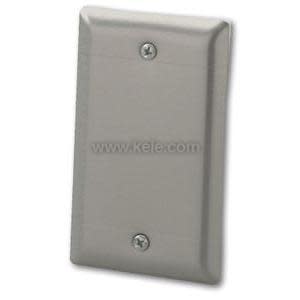

Room Temperature Sensor, 10K Type II, Stainless Steel Plate, No Setpoint, No Override, Security Screws
Brand:BAPI
MPN:BA/10K-2-SP-SEC1
SKU:BA/10K2SPSEC1
List Price:
$27.69
Today's Price:
$14.40
Log in for customized pricingproduct specifications
Type
Thermistor
Housing Material
Metallic
Sensor Element
10K Type 2 Thermistor
Housing Style
Stainless Steel Plate
Display
No
Setpoint
No
Accessory
T81U-XR,T85U-XR,T91U-XR,UR,DCP-1.5-W,DCPA-1.2
Feature
Security Screws
Application
Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment
Output Signal
Resistance
product series specifications
Accuracy: Thermistor: ±0.36°F (0.2°C)
RTD:
385 Curve: ±0.27°F (0.15°C)
375 Curve: ±0.54°F (0.30°C)
Sensor Type:
Thermistor: 10 kΩ Type II & III
RTD: 100Ω, 1000Ω, 385 curve; 1000Ω, 375 curve
Temperature Range: 32° to 158°F (-0° to 70°C)
Stability:
Thermistor: < 0.036 F (0.02C) per year
RTD: 0.14°C with 6,000 continuous hours at 400°C
Heat Dissipation: 2.7 mW/°C (power need to raise the temperature 1C), 0.4°C/mW at 0°C
Enclosure Rating: NEMA 1, ABS plastic, UL94V-0
Mounting: Directly to wall or single gang box
Wiring Terminations: Terminals
Weight: 0.25 lb (0.1 Kg)
Approvals: CE, RoHS
Warranty: Lifetime
product series features
- ±0.36 degrees F (±0.2 degrees C) Thermistor accuracy
- ±0.27 degrees F (±0.15 degrees C) or ±0.54 degrees F (±0.30 RTD degrees C) RTD accuracy
- ±2.7 degrees F (±1.5 degrees C) semiconductor accuracy
- Lifetime limited sensor warranty
- Wide selection of thermistor, RTD, and semiconductor curves
more information & related documents
Series Description
The BA Series Room Sensors are designed specifically for HVAC applications. The room sensors come in a variety of enclosure styles, including Delta, PreCon, stainless steel plate, and BAPIstat II. Each room sensor is available with thermistor, RTD, and semiconductor sensors, which makes the BA sensors compatible with every Building Automation Systems, BAS, in use today.
Kele Description
WALL 10K-2- THMS SECURITY SCREWS W/PLATE
Manufacturer
BAPI
