A/WPR2-100-10-LCD | ACI | Pressure Components

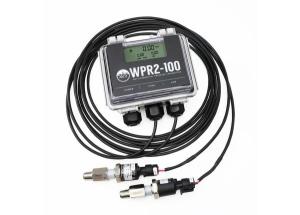

DP TRANS WET REMOTE PROBE 0-100PSI 10FT CABLES LCD
Brand:ACI
MPN:A/WPR2-100-10-LCD
SKU:A/WPR2-100-10-LCD
List Price:
$1,487.00
Today's Price:
$773.24
Log in for customized pricingproduct specifications
Media Compatibility
Liquid/Gas
Output
0 - 5 VDC
Range
±100 psi
Type
Transmitter
product series specifications
Supply Voltage: 4-20 mA Output: 18-36 VDC (250 Ohm Load max.) 20-36 VDC (500 Ohm Load max.) 24 VAC (+/-10%) 50/60 Hz
0-5 VDC; 0-10 VDC Output: 16-36 VDC ; 24 VAC (+/- 10%) 50/60 Hz
Supply Current: 4-20 mA Output: 24 mA minimum; 0-5 VDC; 0-10 VDC Outputs: 6 mA minimum
Output Signals: 2-wire: Linear 4-20 mA DC Current (Field Selectable) 3-wire:0-5 VDC; 0-10 VDC (Default) & 4-20mA (Field Selectable)
Accuracy (Three Highest Ranges): ±1.0% FSO
Accuracy (Lowest Range2): ±1.5% FSO
Thermal Effects:±2.0% FSO from 32-140°F (0-60°C)
Operating Temperature:
Transducer: -40 to 257°F (-40 to 125°C)
Electronics/Housing/Cables: 32 to 167°F (0 to 75°C)
Compensated Temperature Range: 32 to 140°F (0 to 60°C)
Storage Temperature: -13 to 176°F (-25 to 80°C)
Operating Humidity: 10 to 90% RH, non-condensing
Recommend Torque Specification: 150 lbs-in (16.95 Nm)
product series features
- Designed to reduce installation time and provide mounting flexibility, often eliminating the need for additional plumbing and manifolds.
- WPR2’s enclosure opens conveniently to allow it to be reconfigured between three additional ranges and outputs of 4 to 20 mA, 0 to 5 VDC, or 0 to 10 VDC (default).
- The different configurations in this series can measure both uni or bi-directional pressure ranges as low as 3 psi and as high as 300 psi, depending on the unit.
- Push button auto zero function for remote calibration.
- The LCD option will display pressure values for both the High and Low side pressures, a differential pressure value, “OVR” for values over the specified range, “ERROR” for differential pressures out of range, and “ZERO” when the auto-zero is in process.
more information & related documents
Series Description
The ACI WPR2 Series Remote Wet to Wet Differential Pressure Transmitter is designed to reduce installation time and provide mounting flexibility, often eliminating the need for additional plumbing and manifolds. The WPR2 can be ordered with standard CMP rated PVC cable or with a metal clad cable. The WPR2 accurately measures wet media pressures in a variety of applications. Commonly used for monitoring pumps, these devices are also ideal for measuring pressure across filters, heat exchangers and compressors. The dual remote sensors feature a ceramic capacitive sensing element with a stainless steel diaphragm that’s compatible with liquid, gases, and refrigerants suitable with 304L stainless steel.
Kele Description
DP TRANS WET REMOTE PROBE 0-100PSI 10FT CABLES LCD
Manufacturer
ACI
Related Documents
wpr2 data sheet
