A/AN-R2 | ACI | Temperature Sensors & Transmitters

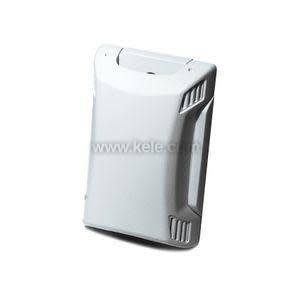

Room Temperature Sensor, Designer, 10K Type III, No Setpoint, No Override
Brand:ACI
MPN:A/AN-R2
SKU:A/ANR2
List Price:
$35.00
Today's Price:
$18.20
Log in for customized pricingproduct specifications
Accessory
T81U-XR, T85U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2
Enclosure Rating
NEMA 1
Application
Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment
Housing Material
Poly
Housing Style
Designer
Sensor Element
10K Type 3 Thermistor
Setpoint
No
Type
Thermistor
Display
No
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor: ±0.36°F (0.2°C)
RTD: ±0.50°F (0.28°C)
Sensor Type:
Thermistor: 10 kO Type II & III, 20 kO, 100 kO
RTD: 100O, 1000O 385 curve
Temperature Range: 32° to 122°F (0° to 50°C)
Stability: 0.24°F (0.13°C) over five years
Heat Dissipation: Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)
Enclosure Rating: NEMA 1, Plastic
Mounting:Direct to wall or single gang box
Wiring Terminations: 10" of 22 AWG wire or terminal strip
Weight: 0.12 lb (0.05 Kg)
Approvals: CE, RoHs
Warranty: 5 years
product series features
- ±0.36 degrees F (0.2 degrees C) accuracy
- Five-year warranty
- Wide selection of thermistor or RTD curves
- Delta-style room enclosure
- Digital display option
- Custom logos
more information & related documents
Series Description
The ACI Series Room Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The room sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Room sensors are vented for indoor use with options that include setpoint adjust, push-button override, communication jacks, and display. The ACI Room Sensor should be mounted approximately 5 ft (12.7 cm) above the floor. It can be mounted to a standard back box or directly to the wall using appropriate anchors for the wall covering.
Kele Description
WALL SENSOR 10K 3 THMS
Manufacturer
ACI
