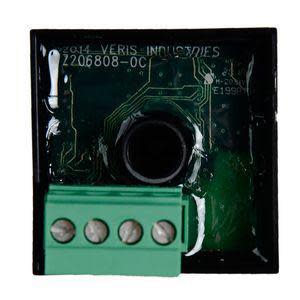

A compact circuit board featuring a four‑screw green terminal block and central black sensor component

AA10B0C150 | Veris | Temperature Sensors & Transmitters

Temperature-to-Current Transmitter 100 OHM RTD 0 TO 150C

Brand:Veris

MPN:AA10B0C150

SKU:AA10B0C150

List Price:

$239.00

Today's Price:

$124.28

installation instructions

product specifications

Type

RTD

Probe Length

None

Sensor Element

100 Ohm Platinum RTD 385

Output Signal

Analog

product series specifications

Accuracy

Thermistor:

2.2k, 3k,20k,100k: ±0.11°F (0.2°C)

10k Type 2 & 3: ± 0.06°F (0.1°C)

RTD

100, 100 385 curve

±0.17°F (0.3°C)

Sensor Type

Thermistor: 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ

RTD: 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve

Temperature Range

Thermistor/RTD: -13° to 221°F (-25° to 105°C)

Temperature Coefficient:

Thermistor: Negative temperature coefficient

RTD: Positive temperature coefficient

Mounting: Directly to pipe with well

Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m)

Probe length: 2 1/2" (6.4 cm) 4" (10 cm), 6” (15 cm), 8"(20 cm) and 12" (30 cm)

Enclosure: 1/2" thread NPT head, handibox, weatherproof enclosure and service body

Approvals: CE

Weight: Style specific

Warranty: 5 year

more information & related documents

Series Description

The Veris TIH, TID, TIW and TIG Immersion Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The TIH Series is a 1/2 in thread NPT connection with lenghts of 2 1/2 in (6.4 cm), 4 in (10 cm), 6 in (15 cm), 8 in (20 cm) and 12 in (30 cm). The TID Series has metal handi box, while the TIW Series has a weatherproof enclosure. The TIG Series has service body.

Kele Description

XMTR 100 OHM RTD 0 TO 150C

Manufacturer

Veris
