A/TTM1K-LTS-4-4X-10 | ACI | Temperature Sensors & Transmitters
1K OHM LT FRZR 4-20MA TRANS NEMA 4X 10' LEADS
Brand:ACI
MPN:A/TTM1K-LTS-4-4X-10
SKU:A/TTM1K-LTS-4-4X-10
List Price:
$565.70
Today's Price:
$294.16
Log in for customized pricingproduct specifications
Probe Length
None
Sensor Element
1K Platinum RTD 385
Type
RTD
Output Signal
Analog
product series specifications
Supply Voltage: 18.5 to 32 VDC loop powered (TT1K only)
Accuracy: ±1.5% of span
Signal Output: 4-20 mA @ 500 O (TT1K only)
Sensor Type: 100 O platinum three wire 385 curve 1K O platinum three wire 385 curve
Operating Temperature: -324° to 302°F (-198° to 150°C)
Materials Of Construction: Probe: Stainless steel Enclosure (TT1K only): NEMA 4X Plastic
Dimensions: Bottle/bracket: 3.4"H x 1.8"W x 1.6"D (8.6 x 4.6 x 4.1 cm)
NEMA 4X (TT1K only): 3.7"H x 2.6"W x 2.2"D (9.4 x 6.6 x 5.6 cm)
Enclosure Rating: NEMA 1
Weight: 0.76 lb (0.34 Kg) maximum
Approvals: RoHS
Warranty: 2 years
product series features
- 100, 1k 385 RTD or 4-20 mA transmitter models
- 72 in (183 cm), 120 in (305 cm), 360 in (914 cm) models
- Used in Freezer applications
more information & related documents
Series Description

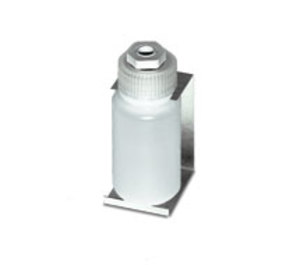

The ACI A/XXXLTS Thermal Vial Temperature Sensing is ideal for freezers, coolers, and refrigeration units to monitor the temperature of the contents, rather than the air temperature. The vial is filled with fluid such as glycol or water which emulates the material being stored.
Kele Description
1K OHM LT FRZR 4-20MA TRANS NEMA 4X 10' LEADS
Manufacturer
ACI
Related Documents
Glycol Bottle Data Sheet
