ST-STP24 | Kele | Temperature Sensors & Transmitters
Strap-On Temperature Sensor, 10,000Ω Thermistor @ 77˚F (25˚C), Type II (yellow leads)
Brand:Kele
MPN:ST-STP24
SKU:ST-STP24
List Price:
$132.00
Today's Price:
$68.64
Log in for customized pricingproduct specifications
Accessory
#20, APB-28, PN-46, TCC-111, TCC-12, T85U-XR, T81U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2
Housing Material
Metallic
Housing Style
Strap-On
Lead Length
8 ft
Sensor Element
10K Type 2 Thermistor
Strap Pipe Diameter
0.75 to 6.00 in
Type
Thermistor
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor: ±0.36°F (0.2°C)
RTD:
Type 63: ±0.72°F (0.40°C)
Type 71: +/-0.0774°F (0.043°C)
Type 81, 85: ±0.27°F (0.15°C)
Type 91: ±0.54°F (0.30°C)
Sensor Type:
Thermistor: 2.252 kO, 3 kO, 10 kO Type II, III & III w/11K shunt, 20 kO, 100 kO
RTD:
Type 63: 1000O Nickel
Type 71, 81: 100O Pt 385 Curve
Type 85: 1000O Pt 385 Curve
Type 91: 1000O Pt 375 Curve
Temperature Range:
Thermistor/RTD: -40° to 221°F (-40° to 105°C)
Temperature Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD: Max 0.04% after 1k hours @ 500 °C
Enclosure Rating: NEMA 1, Metal handy box
Mounting: Directly to pipe using adjustable straps, 3/4” to" pipe standard, 10" with option
Wiring Terminations: 8' (2.44m), 24 AWG zip chord using crimp or solder connection, type 71 & 81 have 18" leads
Weight: 1.0 lb (0.45 Kg)
Approvals: CE
Warranty: Lifetime
product series features
- Wide selection of thermistor and RTD curves
- Adjustable steel straps fit multiple pipe sizes
- Fexible copper plate conforms to pipe surface
- Copper plate is insulated from ambient air
- Lifetime warranty
- Ultra high accuracy optional
more information & related documents
Series Description

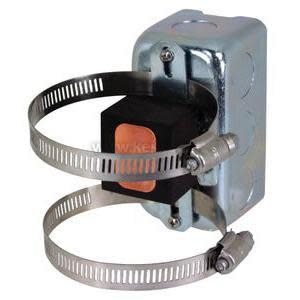

The Precon ST-STP* Thermistor and RTD Series strap-on sensor provides precision monitoring of a pipe surface temperature. The unique design features the sensor attached to a flexible copper plate that will conform to the pipe surface. The rubber pad provides spring tension plus surrounds the copper plate to eliminate the effects of ambient air temperature.
Kele Description
STRAP-ON THERMISTOR MODEL 24 10K TYPE II
Manufacturer
Kele
