KTM85SC | Kele | Temperature Sensors & Transmitters

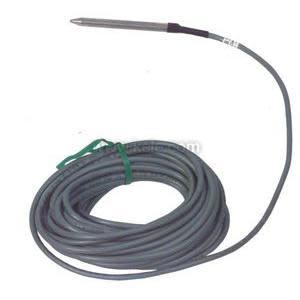

Bullet Temperature Sensor, 1000Ω Encapsulated RTD @ 32°F (0°C), 385 Platinum Curve (Gray leads), Stainless Steel Sheath, 25 ft Rugged Cable
Brand:Kele
MPN:KTM85SC
SKU:KTM85SC
List Price:
$90.21
Today's Price:
$46.91
Log in for customized pricingproduct specifications
Accessory
#20, APB-28, PN-46, TCC-111, TCC-12, T85U-XR, T81U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2
Application
Cold Water Systems, Hot Water Systems, Retrofit, Hydronic Heating Systems, Chillers
Housing Style
Bullet
Lead Length
25 ft
Probe Length
3 in
Sensor Element
1K Platinum RTD 385
Type
RTD
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor: ±0.50°F (±0.28°C)
RTD: ±0.60°F (±0.33°C)
Sensor Type:
Thermistor: 2.252 kO, 3 kO, 10 kO Type II, III & III w/11K shunt, 20 kO, 100 kO
RTD:
Type 71, 81: 100O Pt 385 Curve
Type 85: 1000O Pt 385 Curve
Type 91: 1000O Pt 375 Curve
Temperature Range:
Thermistor/RTD: -40° to 221°F (-40° to 105°C)
Temperature Coefficient:
Thermistor: Negative temperature coefficient
RTD: Positive temperature coefficient
Temperature Stability:
Thermistor:0.24°F (0.13°C) over five years
RTD: Max 0.04% after 1k hours @ 500 °C
Heat Dissipation: 2.7 mW/°C (power needed to raise the temperature 1°C)
Mounting: Directly to wall or customer supplied enclosure using customer-supplied clips
Wiring Terminations: 8' (2.44m) of 24 AWG gray wire leads, Type 71 & 81 sensors have 18" (0.45m) leads
Weight: KTM*S 0.15 lb (0.07 Kg) w/o options with no options; KTM*SC 0.45 lb (0.2 Kg) with no options
Approvals: CE
Warranty: 3 years
product series features
- Three-year warranty
- Wide selection of thermistor and RTD curves
- Tip sensitive for precise temperature response
- Durable 304 stainless steel casing
- Easy to mount to wall, box, or pipe
- Waterproof probe
more information & related documents
Series Description
The Kele Stainless Steel Sheath Thermistor and RTD Sensors provide remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The active sensing element is a highly stable thermistor material or platinum RTD. The sensing element is rugged and sealed with a thermally conductive compound in a versatile 3 in (7.6 cm)- long stainless steel tube. The probe is waterproof, and the sensor is ideal for use in refrigeration cases or as a strap-on sensor for pipes. The KTM*S Stainless Steel Sheath Sensors are suitable for direct application to pipe surfaces for chilled or hot water measurement. They are also used for freezer cases where moisture protection is important. These rugged strap-on sensors come with 8 ft (2.4m), 24-gauge zipcord leads. The KTM*SC Stainless Steel Sheath Sensors come with a rugged, 25 ft (7.6m) cable that allows for termination away from areas of condensation. It is an ideal choice for freezer case applications.
Kele Description
FREEZER SENSOR 1K OHM TYPE 85 RTD
Manufacturer
Kele
