BA/10K-2-S-BB2 | BAPI | Temperature Sensors & Transmitters

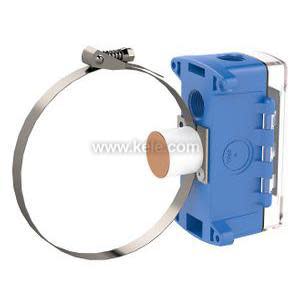

Strap-On Temperature Sensor, 10K Type II Thermistor, 2.00 to 4.50 Pipe Diameter
Brand:BAPI
MPN:BA/10K-2-S-BB2
SKU:BA/10K2-S-BB2
List Price:
$62.54
Today's Price:
$32.52
Log in for customized pricingproduct specifications
Accessory
#20, APB-28, PN-46, TCC-111, TCC-12, T85U-XR, T81U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2
Enclosure Rating
NEMA 4, IP66
Application
Cold Water Systems, Hot Water Systems, Retrofit, Hydronic Heating Systems, Chillers
Housing Material
Poly
Housing Style
Strap-On
Sensor Element
10K Type 2 Thermistor
Strap Pipe Diameter
2.00 to 4.50 in
Type
Thermistor
Output Signal
Resistance
product series specifications
Accuracy: Thermistor: ±0.36°F (±0.2°C); RTD: ±0.55°F (±0.30°C)
Sensor Type:
Thermistor: 10 kO Type II & III
RTD: 100O, 1000O, 385 curve; 1000O, 375 curve
Temperature Range:32° to 158°F (-0° to 70°C)
Thermistor:
Temperature Output: Resistance
Accuracy: ± 0.36°F (± 0.2°C)
Stability: < 0.036°F/Year (< 0.02°C/Year)
Heat Dissipation: 2.7 mW/°C
Temperature Drift: < 0.02°C/Year
Probe Range: -40 to 221°F (-40 to 105°C)
RTD:
Stability: ± 0.25°F (± 0.14°C)
Self Heating: 0.4 °C/mW @0°C
Probe Range: -40 to 221°F (-40 to 105°C)
Nickel (Ni): 1000O @ 70°F, JCI curve
Ni Probe Range: -40 to 221°F (-40 to 105°C)
Enclosure Rating:
JB: NEMA 1, 2x4 steel handy box
BB: NEMA 4, BAPI Box IP66 rated UV-resistant plastic enclosure
BB2: NEMA 4, BAPI Box 2 IP66 rated UV-resistant plastic enclosure
BB4: NEMA 3R, BAPI Box 4 IP44 nylon and plastic enclosure
Mounting: Straps or Clamps to pipe
Wiring Terminations: 22 AWG wire, etched teflon leads
Weight: JB, BB4: 0.75 lb (0.34 Kg); BB, BB2: 1.0 lb (0.45 Kg)
Approvals: CE, RoHS
Warranty: Lifetime
product series features
- Strap-on or clamp-on models
- Lifetime limited sensor warranty
- Wide selection of mounting styles
more information & related documents
Series Description
The BAPI BA Strap-On Temperature Thermistor and RTD Sensors are designed specifically for HVAC systems to monitor water temperature in retrofit or filled pipe applications. They fit around the outside of a pipe and measure the water temperature by sensing the surface temperature of the pipe. They come in thermistor and RTD sensors and feature etched teflon leadwires to perform under real world conditions.
Kele Description
STRAP-ON 10K-2 THMS BAPI BOX 2
Manufacturer
BAPI
Related Documents
BAPI strap on datasheet
