A/1K-NI-S-GD | ACI | Temperature Sensors & Transmitters

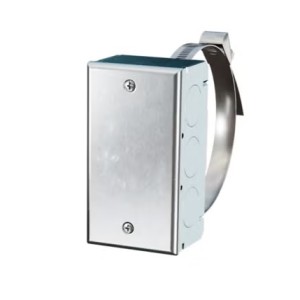

1K Nickel, Strap-On Temperature Sensor, 1 ¼” to 4” Pipe, Galvanized Enclosure, 24” Leads
Brand:ACI
MPN:A/1K-NI-S-GD
SKU:A/1KNISGD
product specifications
Accessory
#20, APB-28, PN-46, TCC-111, TCC-12, T85U-XR, T81U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2
Housing Material
Metallic
Housing Rating
NEMA 1
Housing Style
Strap-On
Lead Length
24 in
Output
Resistance
Probe Length
None
Sensor Element
1K Ohm Nickle-Iron Balco
Strap Pipe Diameter
1.25 to 4.00 in
Type
RTD
product series specifications
Accuracy: ±0.36°F (0.2°C)
Thermistor: ±0.36°F (0.2°C)
RTD: ±0.50°F (0.28°C)
Sensor Type:
Thermistor: 10 kO Type II & III, 20 kO, 100 kO
RTD: 100O, 1000O 385 curve
Temperature Range: -40° to 200°F (-40° to 150°C)
Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD:<±0.1°C drift
Heat Dissipation: Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)
Enclosure Rating: NEMA 1, Galvanized metal box
Wiring Terminations: 10" of 22 AWG wire or terminal strip
Weight: 0.8 lb (0.36 Kg)
Approvals: RoHS, CE
Warranty: 5 years
product series features
- Fits pipes 2 in to 5 in (5.1 to 12.7 cm)
- Two-year warranty
- Stainless steel strap
more information & related documents
Series Description
The ACI Strap On Series Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The strap-on sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Strap-on sensors come with a handy box and stainless steel strap for 5 in (12.7 cm) pipes. The ACI Strap-On Sensor mounts directly to a 2 in to 5 in (5.1 to 12.7 cm) pipe. Clean off any insulation or rust to promote solid contact of the copper plate to the pipe. Wrap and tighten the strap around the pipe and compress the foam fully for a firm mount. Faster response can be achieved by using TCC-12 thermal conductive compound.
Kele Description
STRAP ON 1K NICKEL 2WIRE RTD HBOX
Manufacturer
ACI
