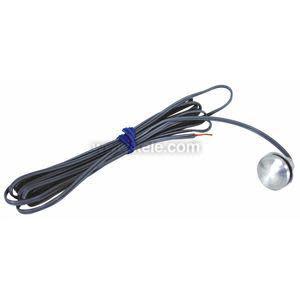

Long white cable with a stainless steel bulb at one end

KTB24S | Kele | Temperature Sensors & Transmitters

10,000Ω Button Style Thermistor @ 77°F (25°C), Type II (Gray Leads), Steel Housing

Brand:Kele

MPN:KTB24S

SKU:KTB24S

List Price:

$282.00

Today's Price:

$146.64

catalog page

product specifications

Type

Thermistor

Probe Length

None

Sensor Element

10K Type 2 Thermistor

Housing Style

Button

Lead Length

8 ft

Accessory

T81U-XR,T85U-XR,T91U-XR,UR,DCP-1.5-W,DCPA-1.2,TB-A,TS-B,TB-S

Feature

Steel Housing

Application

Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment,Duct Temperature,Immersion Temperature,Outside Air Temperature,OSA

Output Signal

Resistance

product series specifications

Accuracy:

Thermistor: ±0.50°F (±0.28°C)

RTD: ±0.60°F (±0.33°C)

Sensor Type:

Thermistor: 2.252 kΩ, 3 kΩ, 10 kΩ Type II, III & III w/11K shunt, 20 kΩ, 100 kΩ

RTD:

Type 71, 81: 100Ω Pt 385 Curve

Type 85: 1000Ω Pt 385 Curve

Type 91: 1000Ω Pt 375 Curve

Temperature Range:

Thermistor/RTD: -40° to 221°F (-40° to 105°C)

Temperature Coefficient:

Thermistor: Negative temperature coefficient

RTD: Positive temperature coefficient

Temperature Stability:

Thermistor: 0.24°F (0.13°C) over five years

RTD: Max 0.04% after 1k hours @ 500°C

Heat Dissipation: 2.7 mW/°C (power needed to raise the temperature 1°C)

Enclosure Rating: NEMA 1, Button style brass, aluminum, 304 Stainless steel

Mounting: Directly to wall

Wiring Terminations: 8', 24 AWG gray wire leads, type 71 & 81 sensors have 18" leads

Weight: 0.25 lb (0.10 Kg) w/o options

Approvals: CE

Warranty: 3 years

product series features

Three-year warranty
Wide selection of thermistor and RTD curves
Optional brass, steel, aluminum metal button style housing
Small, nearly invisible footprint

more information & related documents

Series Description

The Kele KTB* Series Button Style Flush-Mount Thermistor and RTD Sensors provide room temperature sensing for building automation systems. The active sensing element is made of a highly stable, thermistor material or platinum RTD. This design provides moisture/vapor resistance and is bonded to either brass, steel or aluminum button style housing easily mountable into any wall. This sensor is intended for interior use only.

Kele Description

TEMP SENSOR, ROOM, 10K TYPE II, BUTTON, NO SETPOIN

Manufacturer

Kele
