THTOSB00 | Tasseron Sensors | Temperature Sensors & Transmitters

OUTDOOR SAFE NTC 10K-3

Brand:Tasseron Sensors

MPN:THTOSB00

SKU:THTOSB00

List Price:

$47.94

Today's Price:

$24.93

Lead time of 5 days. Chat with Kele experts now

product series specifications

Enclosure: IP54, Injection-molded polycarbonate

Cover: Quick Snap, injection-molded polycarbonate

Mounting: Integrated mounting hole, complete with mounting hardware

Connection: 2-pole AWG 22-16 / 0.35-1.5mm2 spring-loaded, Patent Pending Quick Connect System

Sensor Element: Interchangeable NTC thermistor, 2-wire, RTD Pt1000, 2-wire, Ni1000-891, 2-wire

Sensor Value: NTC 10KΩ type 2 @ 25°C / 77°F
NTC 10KΩ type 3 @ 25°C / 77°F
NTC 20KΩ @ 25°C / 77°F
NTC 3KΩ @ 25°C / 77°F
RTD Pt1000 1000Ω @ 0°C / 32°F
RTD Ni1000-891 891Ω @ 0°C / 32°F

Accuracy: NTC thermistor 0...70°C ± 0.2°C / 32...158°F ± 0.36°F
Pt1000 Class B IEC751, ± 0.3°C / ± 0.5°F @ 0°C / 32°F
Ni1000 DIN 43760, ± 0.5°C / ± 0.9°F @ 0°C / 32°F

Range: -40...50°C / -40...122°F

Approvals: CE, RoHS compliant

Warranty: 5-year limited warranty

Accessories: 1/2" NPT conduit adapter

product series features

Made in the USA
Small compact design
Easy mounting
Optional 1/2 in NPT conduit adapter
Patent Pending Quick Connect System for fast installation
NTC thermistors and RTD elements available
Compatible with any control system
CE and RoHS compliant
5 year limited warranty

more information & related documents

Series Description

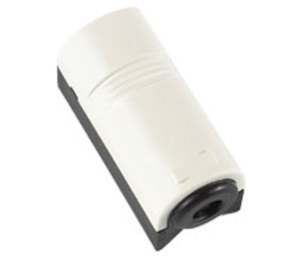

The Tasseron Q-Outdoor Mini is a high quality Outdoor Remote Temperature Sensor with an IP54 injection-molded plastic enclosure provides a cost-effective solution for both commercial and industrial applications. Available measuring elements interface with all major control manufacturers. Accurate interchangeable thermistors and RTD's ensure low drift and are double encapsulated to guarantee the highest reliability. The small, compact and modern design makes this sensor an attractive alternative for regular outdoor sensors. The Quick Snap Cover and patent pending Quick Connect System make installation easy and reduces installation costs.

Kele Description

OUTDOOR SAFE NTC 10K-3

Manufacturer

Tasseron Sensors
