TE-6313P-1 | Johnson Controls | Temperature Sensors & Transmitters

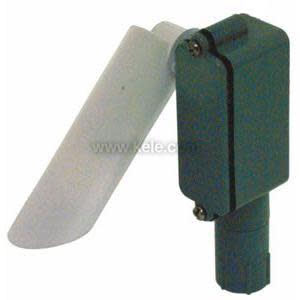

Temperature Probe Sensor, 1000 Ohm Nickel, 3 Outdoor Air, Poly Enclosure
Brand:Johnson Controls
MPN:TE-6313P-1
SKU:TE-6313P-1
List Price:
$84.00
Today's Price:
$43.68
Log in for customized pricingproduct specifications
Accessory
T81U-XR, T85-XR, T91U-XR, DCP-1.5-W, DCPA-1.2, UR, APB-28
Application
Cold Stores, Greenhouses, Production Plants, Warehouses
Housing
Weather Proof
Housing Material
Poly
Probe Length
3 in
Sensor Element
1K Ohm Nickle-Iron Balco
Type
RTD
Output Signal
Resistance
product series specifications
Accuracy:
Room/Probe: ± 0.34°F (± 0.19°C)
Averaging: ± 0.34°F (± 0.19°C)
Sensor Type: 1000 O nickel @ 70°F (21°C)
Temperature Range: -50° to 220°F (-46° to 104°C)
Sensitivity: Approx 3 O /°F (5.4 O /°C)
Operating Temperature:-50° to 122°F (-46° to 50°C)
Enclosure: PVC conduit box
Wiring Terminations: 6" (15.24 cm) of 22 AWG
Probe:Duct/OSA/Strap-on: 0.25" (0.64 cm) stainless steel
Wall: Thin film on circuit board with coating
Averaging: 0.093" (0.24 cm) copper
Warranty: 1 year
product series features
- Easy to mount
- Proven long performance
- Many mounting styles
- Single assembly ordering
- PVC enclosure
- Stainless steel insertion probe
more information & related documents
Series Description
The Johnson Controls TE-6300 Series OSA 1000 Ohm Nickel RTD Sensors from Johnson Controls are specifically designed for HVAC applications and Building Automation Systems, BAS. The OSA sensors all feature a nickel-based active sensing element that has been proven to be very stable and robust with many years of service life. These sensors come complete and ready to install for their specific applications.
Kele Description
TEMP SENSOR, OSA, 1K NI RTD, 3.00" PROBE, POLY ENC
Manufacturer
Johnson Controls
Related Documents
TE6300 Installation Manual
