01UT-5M | Belimo | Temperature Sensors & Transmitters

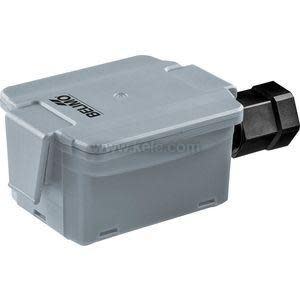

Outside Temperature Sensor Passive, NTC 10k3
Brand:Belimo
MPN:01UT-5M
SKU:01UT-5M
List Price:
$59.16
Today's Price:
$30.76
Log in for customized pricingproduct specifications
Accessory
T81U-XR, T91U-XR, DCP-1.5-W, DCPA-1.2, UR
Application
Cold Stores, Greenhouses, Production Plants, Warehouses
Housing Material
Poly
Probe Length
None
Sensor Element
10K Type 3 Thermistor
Type
Thermistor
Output Signal
Resistance
product series specifications
Supply Voltage:
22UT-52 5...24 VDC, ±10%, 0.5 W; 24 VAC, ±10%, 0.8 VA
22UT-54 15...24 VDC, ±10%, 0.5 W
Enclosure: NEMA 4X / IP65
Cover: Lexan, silver gray
Mounting: Lexan, silver gray RAL7001
Signal Output (Passive Temperature):
01UT-5A PT100
01UT-5B PT1000
01UT-5E Ni1000 (JCI)
01UT-5L NTC10k2
01UT-5M NTC10k3
01UT-5Q NTC20k
Signal Output (Active Temperature): 22UT-52 DC 0-5V, DC0-10V, 22UT-54 4-20 mA
Accuracy:
passive sensors depending on used type
PT = ±0.5°F @ 32°F (±0.3°C @ 0°C)
Ni = ±0.7°F @ 32°F (±0.4°C @ 0°C)
NTC = ±0.3°F @ 77°F (±0.2°C @ 25°C)
Measuring Range: -30°F to 120°F (-35°C to 50°C)
Operating Temperature: -30°F to 120°F (-35°C to 50°C)
Operating Humidity: 85% RH non-condensing
Approvals: CE compliant, UL 2043, UL 50
Weight: 01UT 0.09 lbs, 22UT 0.11 lbs
Warranty: 5 year warranty
product series features
- NEMA 4X / IP65 enclosure
- Available with external stainless steel probe on some models
- Small compact design
- CE Compliant
- 5 year warranty
more information & related documents
Series Description
Belimo's 01UT/22UT Outside Temperature Sensor Series is used for measuring temperature in outdoor areas, in cold stores, greenhouses, production plants and warehouses. Nema 4X / IP65 rated enclosure. Active sensors available in 4-20 mA and DC 0-5V, DC 0-10V on some models.
Kele Description
TEMP SENSOR, OSA, 10K TYPE III, NO PROBE, POLY ENC
Manufacturer
Belimo
