BA/10K-3-O-BB | BAPI | Temperature Sensors & Transmitters

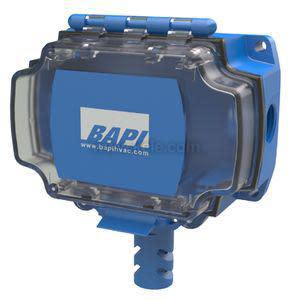

Outside Air Temperature Sensor, 10K Type III, BAPI Box Enclosure, IP66 rated
Brand:BAPI
MPN:BA/10K-3-O-BB
SKU:BA/10K3-O-BB
List Price:
$46.93
Today's Price:
$24.40
Log in for customized pricingproduct specifications
Accessory
T81U-XR, T85-XR, T91U-XR, DCP-1.5-W, DCPA-1.2, UR
Application
Cold Stores, Greenhouses, Production Plants, Warehouses
Housing Material
Poly
Probe Length
None
Sensor Element
10K Type 3 Thermistor
Type
Thermistor
Output Signal
Resistance
product series specifications
Accuracy: ±0.36°F (0.2°C)
Thermistor: ±0.36°F (0.2°C)
RTD: ±0.55°F (0.30°C)
Sensor Type:
Thermistor: 10kO Type II & III
RTD: 100O, 1000O, 385 curve; 1000O, 375 curve
Temperature Range: 32° to 158°F (-0° to 70°C)
Stability:
Thermistor: < 0.036°F (0.02°C) per year
RTD: 0.14°C with 6,000 continuous hours at 400°C
Heat Dissipation:
Thermistor: 2.7 mW/°C (power need to raise the temperature 1°C)
RTD: 0.4°C/mW at 0°C
Enclosure Rating:
WP: NEMA 3R, metal enclosure
BB: NEMA 4, weatherproof, UV- resistant plastic enclosure
BB2: NEMA 4, BAP-Box 2 IP66 rated, UV-resistant plastic enclosure
Mounting: Directly to wall
Wiring Terminations: 22 AWG wire, etched teflon leads
Weight: 0.8 lb (0.36 Kg)
Approvals: CE, RoHS
Warranty: Lifetime
product series features
- Quick Response sensor
- Well ventilated, light colored sensor guard
- three watertight enclosure styles
- Lifetime limited sensor warranty
more information & related documents
Series Description
The BAPI BA Series OSA Thermistor and RTD Sensors are designed specifically for HVAC systems to be mounted outdoors. The UV-resistant plastic shield keeps the sensor out of the sunlight and allows for excellent air circulation. They come in thermistor and RTD sensors and feature etched teflon leadwires to perform under real world conditions.
Kele Description
TEMP SENSOR, OSA, , 10K TYPE III, POLY ENCL
Manufacturer
BAPI
