THTIGA4A | Tasseron Sensors | Temperature Sensors & Transmitters

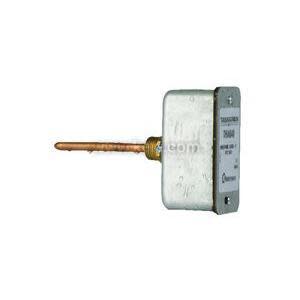

Q-Immersion Box 10K type 2, 4.00" Probe w/ 1/2” NPT Brass Adapter, IP40
Brand:Tasseron Sensors
MPN:THTIGA4A
SKU:THTIGA4A
List Price:
$43.86
Today's Price:
$22.81
Log in for customized pricingproduct specifications
Type
Thermistor
Housing Material
Metallic
Probe Length
4 in
Sensor Element
10K Type 2 Thermistor
Accessory
T81U-XR,T91U-XR,TCC-111,TCC-12,UR,WEK-B,WEL-S
Feature
Brass Well Adapter
Application
Hydronic HVAC
Output Signal
Resistance
product series specifications
Enclosure:
Q-Duct Box: IP40, 18 gauge / 1.2mm galvanized steel (IP54 version on request)
Q-Duct Mini: IP54, injection-molded 30% glass filled nylon
Cover:
Q-Duct Box: Dual slotted galvanized steel Quick Attach cover
Q-Duct Mini: Quick Snap, injection-molded polycarbonate
Mounting:
1/2" NPT brass/copper immersion well
1/2" NPT stainless steel immersion well
1/2" NPT brass adapter
(Machined high pressure stainless steel wells on request)
Probe Length: 4"
Probe Material: 6mm (± 1/4") AISI 316 stainless steel
Connection: 2-pole AWG 22-16 / 0.35-1.5mm² spring-loaded, Patent Pending Quick Connect System
Sensor Element: Interchangeable NTC thermistor, 2-wire; RTD Pt1000, 2-wire; RTD Ni1000-891, 2-wire
Sensor Value:
NTC 10KΩ type 2 @ 25°C / 77°F
NTC 10KΩ type 3 @ 25°C / 77°F
NTC 20KΩ @ 25°C / 77°F
NTC 3KΩ @ 25°C / 77°F
RTD Pt1000 1000Ω @ 0°C / 32°F
RTD Ni1000-891 891Ω @ 0°C / 32°F
(Other elements on request)
Accuracy:
NTC thermistor 0...70°C ± 0.2°C / 32...158°F ± 0.36°F
Pt1000 Class B IEC751, ± 0.3°C / ± 0.5°F @ 0℃ / 32°F
Ni1000 DIN 43760, ± 0.5°C / ± 0.9°F @ 0℃ / 32°F
Range: -40...125°C / -40...257°F
Approvals: CE, RoHS compliant
Warranty: 5 year limited warranty
Accessories: Machined stainless steel immersion wells, IP54 weatherproof grommet, 10 piece pack of thermal paste, 1/2" NPT brass adapter
product series features
- Made in the USA
- AISI 316 stainless steel temperature probe
- Complete with 1/2 in NPT brass/copper or stainless steel immersion well or brass adapter
- Patent Pending Quick Connect System eliminates wire nuts
- NTC thermistors and RTD elements available
- Compatible with any control system
- CE and RoHS compliant
- 5 year limited warranty
more information & related documents
Series Description
The Tasseron Q-Immersion Series are high quality universal Immersion Temperature Sensors with IP40 galvanized steel enclosures and stainless steel AISI 316 probe for both commercial and industrial applications. Available measuring elements interface with all major control manufactures. Accurate thermistors and RTD's ensure low drift and are double encapsulated to guarantee the highest reliability. The sensors come with a 1/2 in NPT brass/copper or stainless steel immersion well for corrosive applications. The dual-slotted foamed cover and patent pending Quick Connect System make installations easy and reduce installation costs.
Kele Description
TEMP SENSOR, IMMERS, 10K TYPE II, 4.00" PROBE, POLY ENCL
Manufacturer
Tasseron Sensors
Tasseron Q-IMMERSION-BOX-Datasheet 2016-09-29 v07
