ST-W91E-XW | Kele | Temperature Sensors & Transmitters

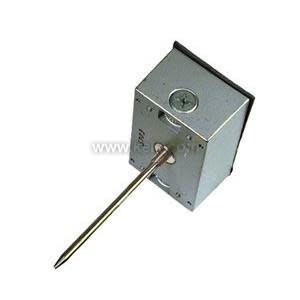

Immersion Temperature Sensor, 1K RTD 375, Sensor without well, Weather Resistant Housing, 4.87 in Probe
Brand:Kele
MPN:ST-W91E-XW
SKU:ST-W91E-XW
product specifications
Accessory
WEL-B, WEL-S, TCC-111, TCC-12, UR
Enclosure Rating
NEMA 3R
Application
Hydronic HVAC
Housing
Weather Proof
Housing Material
Metallic
Probe Length
4.87 in
Sensor Element
1K Platinum RTD 375
Type
RTD
Output Signal
Resistance
product series specifications
Accuracy: ±0.36°F (0.2°C)
Thermistor: ±0.36°F (0.2°C)
RTD:
Type 63: ±0.72°F (0.40°C)
Type 71: +/-0.0774°F (0.043°C)
Type 81, 85: ±0.27°F (0.15°C)
Type 91: ±0.54°F (0.30°C)
Sensor Type:
Thermistor: 2.252 kO, 3 kO, 10 kO Type II, III & III w/11K shunt, 20 kO, 100 kO
RTD:
Type 63: 1000O Nickel
Type 71, 81: 100O Pt 385 Curve
Type 85: 1000O Pt 385 Curve
Type 91: 1000O Pt 375 Curve
Temperature Range: -40° to 221°F (-40° to 105°C)
Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient
Temperature Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD: Max 0.04% after 1k hours @ 500 °F
Heat Dissipation: 2.7 mW/°C (power needed to raise the temperature by 1°C)
Enclosure Rating: Depends on model
Mounting: Directly to pipe in supplied brass well, no adapters needed for standard boxes, customer-supplied 1/2" Thredolet® required in pipe
Wiring Terminations: 8' (2.4m) of 24 AWG pigtails with pre-stripped ends, type 71 & 81 have 18" leads
Weight:0.65 lb (0.3 Kg) w/o well
Approvals: CE
Warranty: Lifetime
product series features
- Lifetime warranty
- ±0.36 degrees F (±0.2 degrees C) thermistor accuracy
- ±1 degrees F (0.53 degrees C) RTD accuracy
- Wide selection of thermistor and RTD curves
- Brass thermowell for quick temperature response
- Adaptable with many options
- Easy to mount and remove from thermowell
- Waterproof stainless steel probe
more information & related documents
Series Description
The Precon Model ST-W Immersion Sensor from PreCon provides precise remote temperature sensing for Building Automation Systems, BAS, and mechanical equipment room instrumentation. The active sensing element is a highly stable precision thermistor material or platinum RTD. The sensing element is sealed with a temperature conductive compound in a 4-7/8 in (12.4 cm) stainless steel tube and brass fitting. A brass thermowell is the standard well provided with each sensor. A Greenfield connector is factory installed for flexible connection. The probe assembly on these immersion sensors are removable for replacement without the draining system.
Kele Description
TEMP SENSOR, IMMERS, 1K RTD 375, 4.875" PROBE, METALLIC ENCL
Manufacturer
Kele
