TE-631AM-2 | Johnson Controls | Temperature Sensors & Transmitters

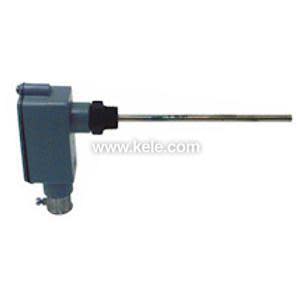

Immersion Temperature Sensor, 1k ohm Nickel Wire, 6 Probe,Metal Enclosure

Brand:Johnson Controls

MPN:TE-631AM-2

SKU:TE-631AM-2

List Price:

$67.00

Today's Price:

$34.84

product datasheet

installation instructions

catalog page

19 in stock

product specifications

Accessory

TCC-111, TCC-12, UR, TE-6300W-101

Enclosure Rating

NEMA 1

Application

Hydronic HVAC

Housing Material

Metallic

Probe Length

6 in

Sensor Element

1K Ohm Nickle-Iron Balco

Type

RTD

Output Signal

Resistance

product series specifications

Accuracy:

Room/Probe: ± 0.34°F (± 0.19°C)

Averaging: ± 0.34°F (± 0.19°C)

Sensor Type: 1000 O nickel @ 70°F (21°C)

Temperature Range: -50° to 220°F (-46° to 104°C)

Sensitivity: Approx 3 O /°F (5.4 O /°C)

Operating Temperature: -50° to 122°F (-46° to 50°C)

Enclosure: PVC conduit box

Wiring Terminations: 6" (15.24 cm) of 22 AWG

Probe: Duct/OSA/Strap-on: 0.25" (0.64 cm) stainless steel

Wall: Thin film on circuit board with coating

Averaging: 0.093" (0.24 cm) copper

Warranty: 1 year

product series features

Easy to mount
Proven long performance
Many mounting styles
Single assembly ordering
PVC enclosure
Stainless steel insertion probe

more information & related documents

Series Description

The Johnson Controls TE-6300 Series Immersion 1000 Ohm Nickel RTD Sensors from Johnson Controls are specifically designed for HVAC applications and Building Automation Systems, BAS. The immersion sensors all feature a nickel-based active sensing element that has been proven to be very stable and robust with many years of service life. These sensors come complete and ready to install for their specific applications.

Kele Description

TEMP SENSOR, IMMERS, 1K NI RTD, 6.00" PROBE, METAL

Manufacturer

Johnson Controls
